The AR Series stepper motor adopts our AlphaStep technology closed loop control so the motor does not lose synchronism even when subjected to abrupt load fluctuation or acceleration. Requires AlphaStep AR Series Driver.

1.65 in. (42 mm) Frame Size
Closed Loop
DC Input
Single or Double Shaft
Geared Type Available
Electromagnetic Brake Type Available

1 - 25 of 35 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Driver Voltage Input Power

Shaft/Gear Type

Round Shaft with Flat (No Gearhead)
Taper Hobbed Gear
Planetary Gear
Harmonic Gear

Gear Ratio (X:1) (:1)

Shaft

Single
Double

Electromagnetic Brake

Equipped
Not Equipped

Item #	Frame Size	Driver Voltage Input Power	Speed-Torque Characteristics	Holding Torque	Shaft/Gear Type	Gear Ratio (X:1)	Shaft	Electromagnetic Brake	Web Price	CAD

ARM46AK	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 42 oz-in0.3 N·m	- Round Shaft with Flat (No Gearhead)	-	- Single	- Not Equipped	$165.00	- ORIENTAL_2102665461:ARM46AK
ARM46AK-T3.6	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 48 oz-in0.35 N·m	- Taper Hobbed Gear	- 3.6 :1	- Single	- Not Equipped	$294.00	- ORIENTAL_2102665461:ARM46AK-T3.6
ARM46AK-T7.2	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 98 oz-in0.7 N·m	- Taper Hobbed Gear	- 7.2 :1	- Single	- Not Equipped	$294.00	- ORIENTAL_2102665461:ARM46AK-T7.2
ARM46AK-T10	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 141 oz-in1 N·m	- Taper Hobbed Gear	- 10 :1	- Single	- Not Equipped	$309.00	- ORIENTAL_2102665461:ARM46AK-T10
ARM46AK-T20	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Taper Hobbed Gear	- 20 :1	- Single	- Not Equipped	$309.00	- ORIENTAL_2102665461:ARM46AK-T20
ARM46AK-T30	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Taper Hobbed Gear	- 30 :1	- Single	- Not Equipped	$309.00	- ORIENTAL_2102665461:ARM46AK-T30

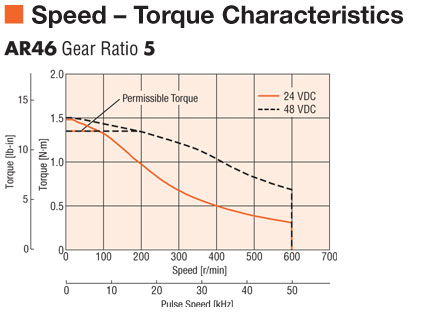

ARM46AK-N5	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 190 oz-in1.35 N·m	- Planetary Gear	- 5 :1	- Single	- Not Equipped	$514.00	- ORIENTAL_2102665461:ARM46AK-N5

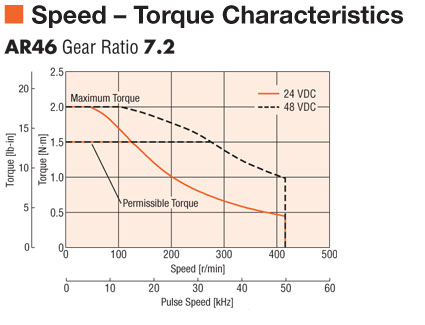

ARM46AK-N7.2	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Planetary Gear	- 7.2 :1	- Single	- Not Equipped	$514.00	- ORIENTAL_2102665461:ARM46AK-N7.2
ARM46AK-N10	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Planetary Gear	- 10 :1	- Single	- Not Equipped	$514.00	- ORIENTAL_2102665461:ARM46AK-N10
ARM46AK-PS5	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 142 oz-in1 N·m	- Planetary Gear	- 5 :1	- Single	- Not Equipped	$416.00	- ORIENTAL_2102665461:ARM46AK-PS5
ARM46AK-PS7	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 210 oz-in1.5 N·m	- Planetary Gear	- 7.2 :1	- Single	- Not Equipped	$416.00	- ORIENTAL_2102665461:ARM46AK-PS7

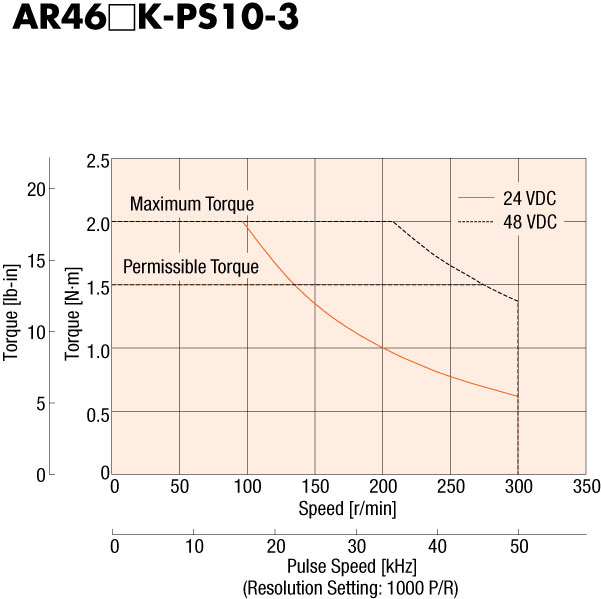

ARM46AK-PS10	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 210 oz-in1.5 N·m	- Planetary Gear	- 10 :1	- Single	- Not Equipped	$416.00	- ORIENTAL_2102665461:ARM46AK-PS10

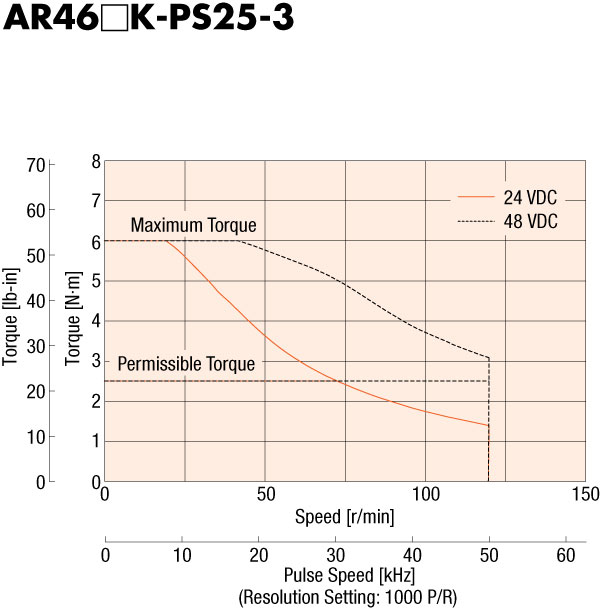

ARM46AK-PS25	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 350 oz-in2.5 N·m	- Planetary Gear	- 25 :1	- Single	- Not Equipped	$471.00	- ORIENTAL_2102665461:ARM46AK-PS25

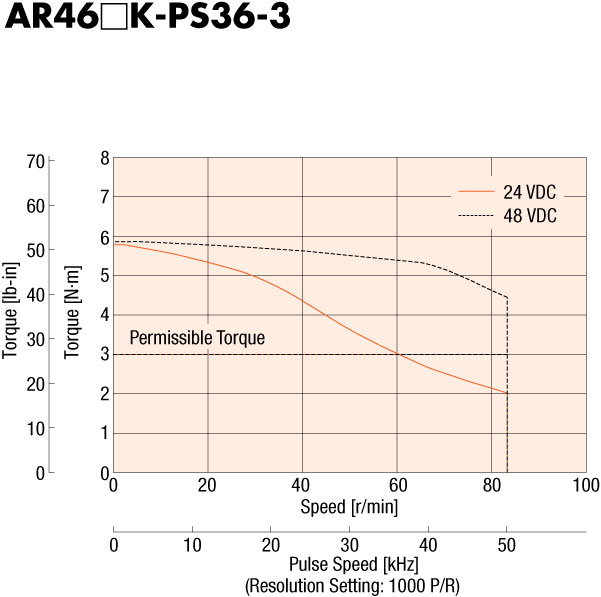

ARM46AK-PS36	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 420 oz-in3 N·m	- Planetary Gear	- 36 :1	- Single	- Not Equipped	$471.00	- ORIENTAL_2102665461:ARM46AK-PS36

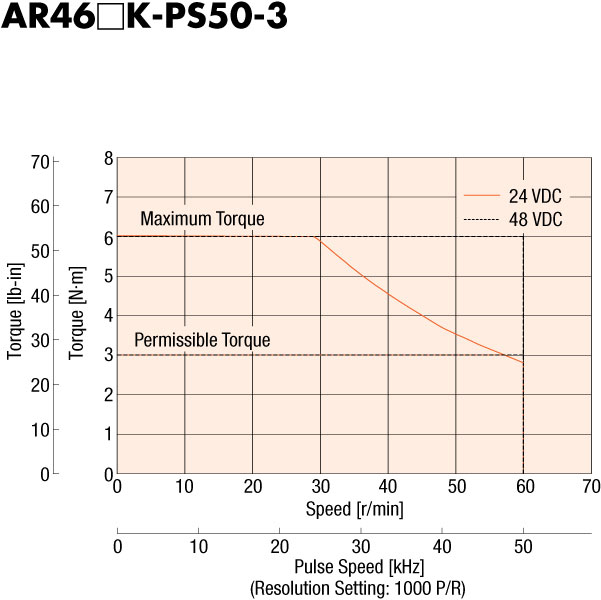

ARM46AK-PS50	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 420 oz-in3 N·m	- Planetary Gear	- 50 :1	- Single	- Not Equipped	$471.00	- ORIENTAL_2102665461:ARM46AK-PS50

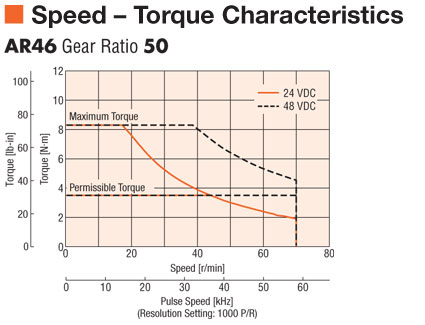

ARM46AK-H50	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 480 oz-in3.5 N·m	- Harmonic Gear	- 50 :1	- Single	- Not Equipped	$737.00	- ORIENTAL_2102665461:ARM46AK-H50

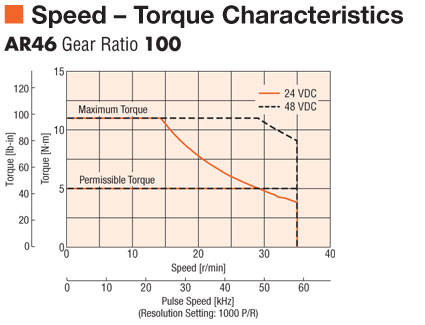

ARM46AK-H100	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 704 oz-in5 N·m	- Harmonic Gear	- 100 :1	- Single	- Not Equipped	$737.00	- ORIENTAL_2102665461:ARM46AK-H100
ARM46BK	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 42 oz-in0.3 N·m	- Round Shaft with Flat (No Gearhead)	-	- Double	- Not Equipped	$168.00	- ORIENTAL_2102665461:ARM46BK
ARM46MK	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 42 oz-in0.3 N·m	- Round Shaft with Flat (No Gearhead)	-	- Single	- Equipped	$399.00	- ORIENTAL_2102665461:ARM46MK
ARM46MK-T3.6	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 48 oz-in0.35 N·m	- Taper Hobbed Gear	- 3.6 :1	- Single	- Equipped	$531.00	- ORIENTAL_2102665461:ARM46MK-T3.6
ARM46MK-T7.2	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 98 oz-in0.7 N·m	- Taper Hobbed Gear	- 7.2 :1	- Single	- Equipped	$531.00	- ORIENTAL_2102665461:ARM46MK-T7.2
ARM46MK-T10	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 141 oz-in1 N·m	- Taper Hobbed Gear	- 10 :1	- Single	- Equipped	$543.00	- ORIENTAL_2102665461:ARM46MK-T10
ARM46MK-T20	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Taper Hobbed Gear	- 20 :1	- Single	- Equipped	$543.00	- ORIENTAL_2102665461:ARM46MK-T20
ARM46MK-T30	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Taper Hobbed Gear	- 30 :1	- Single	- Equipped	$543.00	- ORIENTAL_2102665461:ARM46MK-T30
ARM46MK-N5	- 1.65 in42 mm	- DC	Loading zoom Speed - Torque Characteristics	- 190 oz-in1.35 N·m	- Planetary Gear	- 5 :1	- Single	- Equipped	$748.00	- ORIENTAL_2102665461:ARM46MK-N5
