The AlphaStep AZ Series stepper motor offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Mechanical Absolute Encoder, absolute-type positioning is available, without battery back-up or external sensors to buy. Requires AlphaStep AZ Series Driver.
Item # |
Frame Size |
Driver Voltage Input Power |
Speed-Torque Characteristics |
Holding Torque |
Shaft/Gear Type |
Gear Ratio (X:1) |
Shaft |
Electromagnetic Brake |
Connection Type |
Cable Direction |
Web Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AZM66AKH-PS10 AZM66AKH-PS10/Asset/azm66ach-ps___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 708 oz-in5 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - | $864.00 | CAD - |
| AZM66AKH-PS25 AZM66AKH-PS25/Asset/azm66ach-ps___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1132 oz-in8 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 25 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - | $961.00 | CAD - |
| AZM66AKH-PS36 AZM66AKH-PS36/Asset/azm66ach-ps___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1132 oz-in8 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 36 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - | $961.00 | CAD - |
| AZM66AKH-PS5 AZM66AKH-PS5/Asset/azm66ach-ps___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 495 oz-in3.50 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 5 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - | $864.00 | CAD - |
| AZM66AKH-PS50 AZM66AKH-PS50/Asset/azm66ach-ps___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1132 oz-in8 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 50 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - | $961.00 | CAD - |
| AZM66AKH-PS7.2 AZM66AKH-PS7.2/Asset/azm66ach-ps___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 566 oz-in4 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 7.2 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - | $864.00 | CAD - |
| AZM66AKH-TS10 AZM66AKH-TS10/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 566 oz-in4 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Down | $686.00 | CAD - |
| AZM66AKH-TS10L AZM66AKH-TS10L/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 566 oz-in4 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Left | $686.00 | CAD - |
| AZM66AKH-TS10R AZM66AKH-TS10R/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 566 oz-in4 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Right | $686.00 | CAD - |
| AZM66AKH-TS10U AZM66AKH-TS10U/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 566 oz-in4 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Up | $686.00 | CAD - |
| AZM66AKH-TS20 AZM66AKH-TS20/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 708 oz-in5 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 20 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Down | $686.00 | CAD - |
| AZM66AKH-TS20L AZM66AKH-TS20L/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 708 oz-in5 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 20 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Left | $686.00 | CAD - |
| AZM66AKH-TS20R AZM66AKH-TS20R/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 708 oz-in5 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 20 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Right | $686.00 | CAD - |
| AZM66AKH-TS20U AZM66AKH-TS20U/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 708 oz-in5 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 20 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Up | $686.00 | CAD - |
| AZM66AKH-TS3.6 AZM66AKH-TS3.6/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |

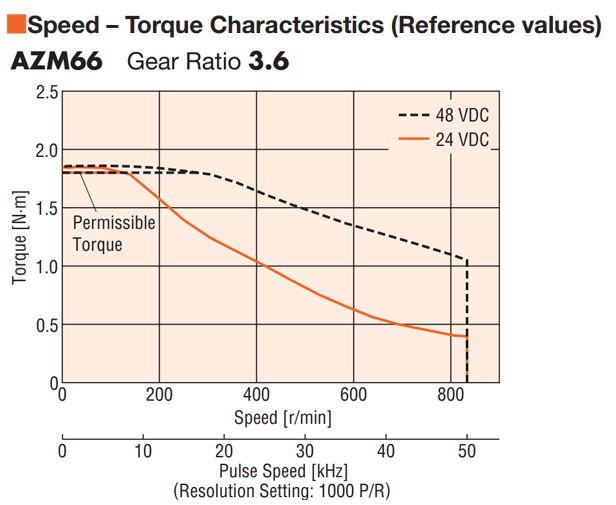

Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 255 oz-in1.80 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 3.6 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Down | $665.00 | CAD - |
| AZM66AKH-TS3.6L AZM66AKH-TS3.6L/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 255 oz-in1.80 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 3.6 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Left | $665.00 | CAD - |
| AZM66AKH-TS3.6R AZM66AKH-TS3.6R/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 255 oz-in1.80 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 3.6 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Right | $665.00 | CAD - |
| AZM66AKH-TS3.6U AZM66AKH-TS3.6U/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 255 oz-in1.80 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 3.6 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Up | $665.00 | CAD - |
| AZM66AKH-TS30 AZM66AKH-TS30/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |

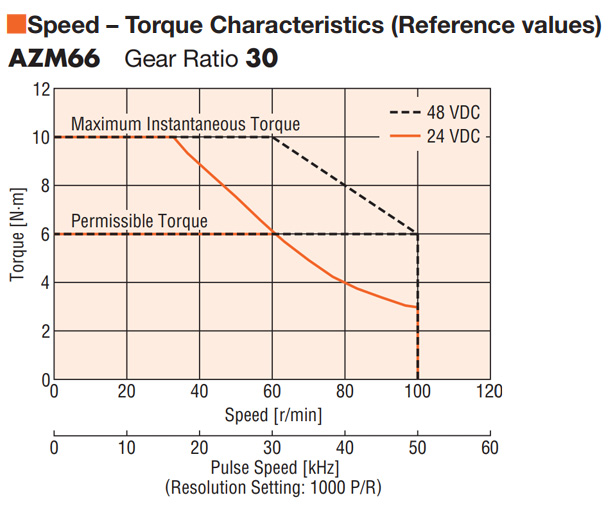

Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 849 oz-in6 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 30 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Down | $686.00 | CAD - |
| AZM66AKH-TS30L AZM66AKH-TS30L/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 849 oz-in6 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 30 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Left | $686.00 | CAD - |
| AZM66AKH-TS30R AZM66AKH-TS30R/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 849 oz-in6 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 30 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Right | $686.00 | CAD - |
| AZM66AKH-TS30U AZM66AKH-TS30U/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 849 oz-in6 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 30 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Up | $686.00 | CAD - |
| AZM66AKH-TS7.2 AZM66AKH-TS7.2/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 420 oz-in3 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 7.2 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Down | $665.00 | CAD - |
| AZM66AKH-TS7.2L AZM66AKH-TS7.2L/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 420 oz-in3 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 7.2 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Left | $665.00 | CAD - |
| AZM66AKH-TS7.2R AZM66AKH-TS7.2R/Asset/azm66a_h-ts___-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - DC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 420 oz-in3 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 7.2 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Connector | Cable Direction - Right | $665.00 | CAD - |
