2.22 in. (56.4 mm) NEMA 23/2.36 in. (60 mm) NEMA 24 PKP Series 5-Phase Stepper Motors
PKP Series 5-Phase Stepper Motors (DC Input)
The PKP series 5-phase stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.
- 2.22 in. (56.4 mm) or 2.36 in. (60 mm) Frame Size
- 5-Phase, New Pentagon (0.36º / 0.72º)
- Single or Double Shaft, 1/4 in. output shaft on 56.4mm type without encoder
- Encoder Types Available
- Max. Holding Torque
- Round Shaft Type = 62 ~ 290 oz-in (0.44 ~ 2.1 N.m)
Item # |
Frame Size |
Output Shaft |
Output Shaft Diameter |
Basic Step Angle |
Speed-Torque Characteristics |
Holding Torque |
Current per Phase |
Shaft/Gear Type |
Gear Ratio (X:1) |
Encoder - Search |
Motor Connection Type |
Electromagnetic Brake |
Shaft |
Web Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PKP564FMN24A PKP564FMN24A/Asset/pkp264d-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.36º |
Speed-Torque Characteristics
 |
Holding Torque 110 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Connector | Electromagnetic Brake Not Equipped | Shaft Single | $74.00 | CAD - ORIENTAL_2102665461:PKP564FMN24A |
| PKP564FMN24B PKP564FMN24B/Asset/pkp264d-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.36º |
Speed-Torque Characteristics
|
Holding Torque 110 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Connector | Electromagnetic Brake Not Equipped | Shaft Double | $76.00 | CAD - ORIENTAL_2102665461:PKP564FMN24B |
| PKP566FMN24A PKP566FMN24A/Asset/pkp264d-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.36º |
Speed-Torque Characteristics
 |
Holding Torque 177 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Connector | Electromagnetic Brake Not Equipped | Shaft Single | $80.00 | CAD - ORIENTAL_2102665461:PKP566FMN24A |
| PKP566FMN24B PKP566FMN24B/Asset/pkp264d-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.36º |
Speed-Torque Characteristics
|
Holding Torque 177 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Connector | Electromagnetic Brake Not Equipped | Shaft Double | $83.00 | CAD - ORIENTAL_2102665461:PKP566FMN24B |
| PKP569FMN24A PKP569FMN24A/Asset/pkp264d-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 10 mm | Basic Step Angle 0.36º |
Speed-Torque Characteristics
 |
Holding Torque 320 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Connector | Electromagnetic Brake Not Equipped | Shaft Single | $109.00 | CAD - ORIENTAL_2102665461:PKP569FMN24A |
| PKP569FMN24B PKP569FMN24B/Asset/pkp264d-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 10 mm | Basic Step Angle 0.36º |
Speed-Torque Characteristics
|
Holding Torque 320 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Connector | Electromagnetic Brake Not Equipped | Shaft Double | $112.00 | CAD - ORIENTAL_2102665461:PKP569FMN24B |
| PKP564FN24A2 PKP564FN24A2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 93 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $90.00 | CAD - ORIENTAL_2102665461:PKP564FN24A2 |
| PKP564FN24B2 PKP564FN24B2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 93 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $92.00 | CAD - ORIENTAL_2102665461:PKP564FN24B2 |
| PKP564FN38A2 PKP564FN38A2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 93 oz-in | Current per Phase 3.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $90.00 | CAD - ORIENTAL_2102665461:PKP564FN38A2 |
| PKP564FN38B2 PKP564FN38B2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 93 oz-in | Current per Phase 3.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $92.00 | CAD - ORIENTAL_2102665461:PKP564FN38B2 |
| PKP564N28AA2 PKP564N28AA2/Asset/pkp266d42b2-img.jpg | Frame Size 2.22 in | Output Shaft Imperial | Output Shaft Diameter 1/4 in. | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 62 oz-in | Current per Phase 2.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $83.00 | CAD - ORIENTAL_2102665461:PKP564N28AA2 |
| PKP564N28BA2 PKP564N28BA2/Asset/pkp266d42b2-img.jpg | Frame Size 2.22 in | Output Shaft Imperial | Output Shaft Diameter 1/4 in. | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 62 oz-in | Current per Phase 2.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $86.00 | CAD - ORIENTAL_2102665461:PKP564N28BA2 |
| PKP566FN24A2 PKP566FN24A2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 163 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $96.00 | CAD - ORIENTAL_2102665461:PKP566FN24A2 |
| PKP566FN24B2 PKP566FN24B2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 163 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $101.00 | CAD - ORIENTAL_2102665461:PKP566FN24B2 |
| PKP566FN38A2 PKP566FN38A2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 163 oz-in | Current per Phase 3.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $96.00 | CAD - ORIENTAL_2102665461:PKP566FN38A2 |
| PKP566FN38B2 PKP566FN38B2/Asset/pkp266d42b2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 163 oz-in | Current per Phase 3.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $101.00 | CAD - ORIENTAL_2102665461:PKP566FN38B2 |
| PKP566N28AA2 PKP566N28AA2/Asset/pkp266d42b2-img.jpg | Frame Size 2.22 in | Output Shaft Imperial | Output Shaft Diameter 1/4 in. | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 115 oz-in | Current per Phase 2.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $90.00 | CAD - ORIENTAL_2102665461:PKP566N28AA2 |
| PKP566N28BA2 PKP566N28BA2/Asset/pkp266d42b2-img.jpg | Frame Size 2.22 in | Output Shaft Imperial | Output Shaft Diameter 1/4 in. | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 115 oz-in | Current per Phase 2.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $92.00 | CAD - ORIENTAL_2102665461:PKP566N28BA2 |
| PKP568N28AA2 PKP568N28AA2/Asset/pkp268d28a2-img.jpg | Frame Size 2.22 in | Output Shaft Imperial | Output Shaft Diameter 1/4 in. | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 210 oz-in | Current per Phase 2.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $110.00 | CAD - ORIENTAL_2102665461:PKP568N28AA2 |
| PKP568N28BA2 PKP568N28BA2/Asset/pkp268d28a2-img.jpg | Frame Size 2.22 in | Output Shaft Imperial | Output Shaft Diameter 1/4 in. | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 210 oz-in | Current per Phase 2.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $114.00 | CAD - ORIENTAL_2102665461:PKP568N28BA2 |
| PKP569FN24A2 PKP569FN24A2/Asset/pkp268d28a2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 290 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $118.00 | CAD - ORIENTAL_2102665461:PKP569FN24A2 |
| PKP569FN24B2 PKP569FN24B2/Asset/pkp268d28a2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 290 oz-in | Current per Phase 2.4 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $120.00 | CAD - ORIENTAL_2102665461:PKP569FN24B2 |
| PKP569FN38A2 PKP569FN38A2/Asset/pkp268d28a2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 290 oz-in | Current per Phase 3.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $118.00 | CAD - ORIENTAL_2102665461:PKP569FN38A2 |
| PKP569FN38B2 PKP569FN38B2/Asset/pkp268d28a2-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 8 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
|
Holding Torque 290 oz-in | Current per Phase 3.8 A/phase | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Double | $120.00 | CAD - ORIENTAL_2102665461:PKP569FN38B2 |

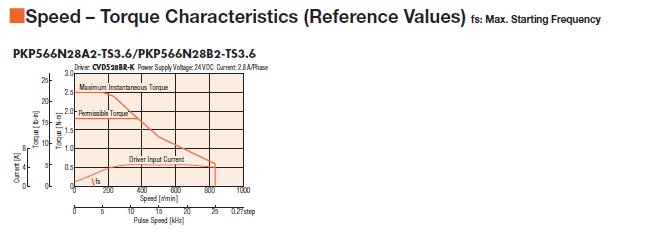

| PKP566N28A2-TS3.6 PKP566N28A2-TS3.6/Asset/pke564ac_ts-img.jpg | Frame Size 2.36 in | Output Shaft Metric | Output Shaft Diameter 10 mm | Basic Step Angle 0.72º |
Speed-Torque Characteristics
 |
Holding Torque 254.4 oz-in | Current per Phase 2.8 A/phase | Shaft/Gear Type Spur Gear (Offset Shaft) | Gear Ratio (X:1) 3.6 :1 | Encoder - Search None | Motor Connection Type Flat Connector | Electromagnetic Brake Not Equipped | Shaft Single | $276.00 | CAD - ORIENTAL_2102665461:PKP566N28A2-TS3.6 |
