The PKP series 5-phase stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.

1 - 25 of 90 | Results Per Page | View | Unit of Measure

1 2 3 4

Request Information Compare Items Search by Specification

Clear Filter

Frame Size (in)

1.1
1.65
2.36

Frame Size (mm)

Output Shaft

Metric

Basic Step Angle

0.36º
0.72º

Current per Phase (A/phase)

0.35
0.75
1.2
1.8
2.4

Type

Standard
High-Torque
High-Resolution
Geared

Shaft/Gear Type

Round Shaft with Flat (No Gearhead)
Spur Gear (Offset Shaft)

Gear Ratio (X:1) (:1)

Encoder

Voltage (TTL equivalent)
Line Driver
500 P/R, Line Driver
500 P/R, Voltage (TTL equivalent)
1000 P/R, Voltage (TTL equivalent)
1000 P/R, Line Driver
None

Motor Connection Type

Connector
Flat Connector

Electromagnetic Brake

Not Equipped

Shaft

Single
Double

Item #	Frame Size	Output Shaft	Output Shaft Diameter	Basic Step Angle	Speed-Torque Characteristics	Holding Torque	Current per Phase	Shaft/Gear Type	Gear Ratio (X:1)	Encoder - Search	Motor Connection Type	Electromagnetic Brake	Shaft	Web Price

PKP523N12A	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 7.3 oz-in0.052 N·m	- 1.2 A/phase	- Round Shaft with Flat (No Gearhead)	-	- None	- Connector	- Not Equipped	- Single	$77.00
PKP523N12B	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 7.3 oz-in0.052 N·m	- 1.2 A/phase	- Round Shaft with Flat (No Gearhead)	-	- None	- Connector	- Not Equipped	- Double	$78.00
PKP525N12A	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 12.9 oz-in0.091 N·m	- 1.2 A/phase	- Round Shaft with Flat (No Gearhead)	-	- None	- Connector	- Not Equipped	- Single	$89.00
PKP525N12B	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 12.9 oz-in0.091 N·m	- 1.2 A/phase	- Round Shaft with Flat (No Gearhead)	-	- None	- Connector	- Not Equipped	- Double	$92.00

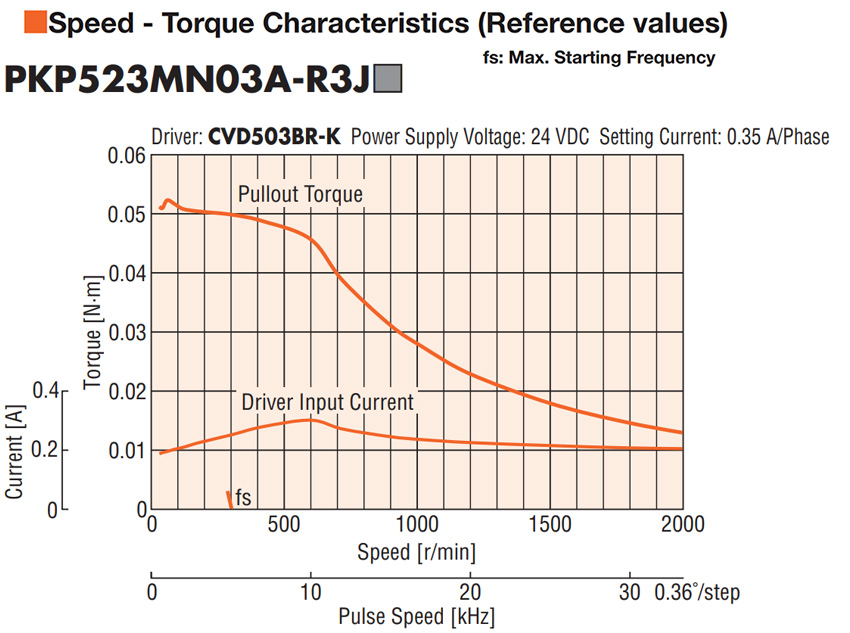

PKP523MN03A-R3J	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 5.95 oz-in0.042 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$138.00
PKP523MN03A-R3JL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 5.95 oz-in0.042 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$138.00
PKP523MN07A-R3J	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 5.95 oz-in0.042 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$138.00
PKP523MN07A-R3JL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 5.95 oz-in0.042 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$138.00
PKP523N03A-R3G	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 6.80 oz-in0.048 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$138.00
PKP523N03A-R3GL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 6.80 oz-in0.048 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$138.00
PKP523N07A-R3G	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 6.80 oz-in0.048 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$138.00
PKP523N07A-R3GL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 6.80 oz-in0.048 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$138.00
PKP523N12A-R3G	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 7.30 oz-in0.052 N·m	- 1.2 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$138.00
PKP523N12A-R3GL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 7.30 oz-in0.052 N·m	- 1.2 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$138.00

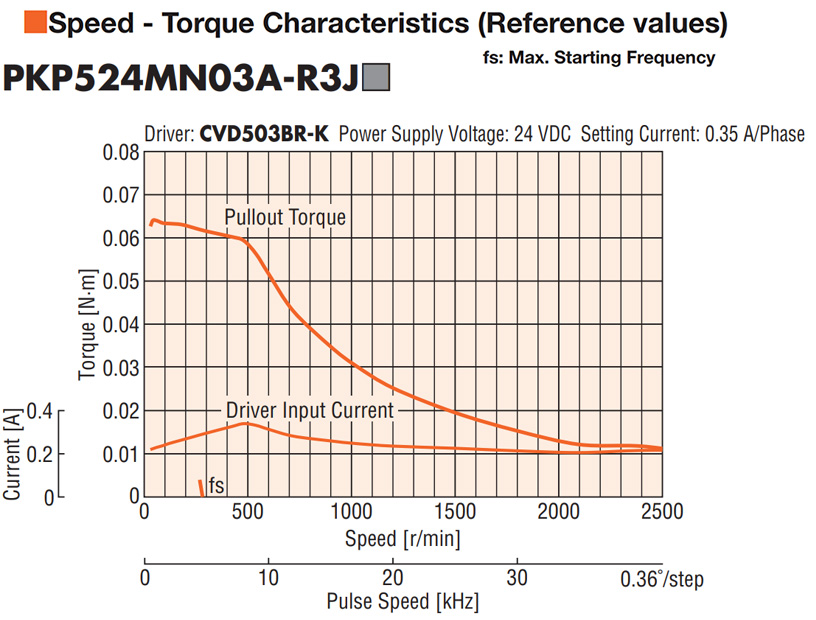

PKP524MN03A-R3J	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 8.64 oz-in0.061 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$145.00
PKP524MN03A-R3JL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 8.64 oz-in0.061 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$145.00
PKP524MN07A-R3J	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 8.64 oz-in0.061 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$145.00
PKP524MN07A-R3JL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 8.64 oz-in0.061 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$145.00
PKP525MN03A-R3J	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 12.75 oz-in0.09 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$150.00
PKP525MN03A-R3JL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 12.75 oz-in0.09 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$150.00

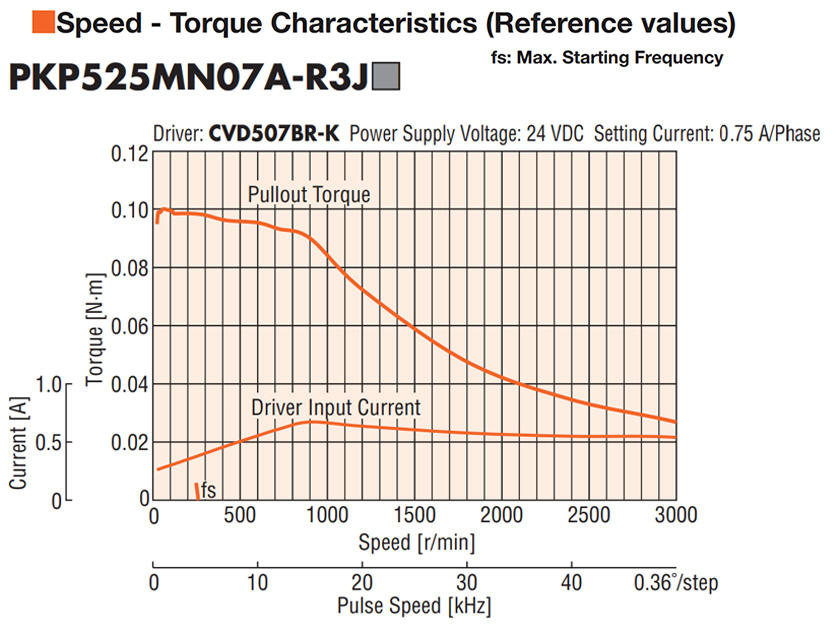

PKP525MN07A-R3J	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 12.75 oz-in0.09 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$150.00
PKP525MN07A-R3JL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.36º	Speed - Torque Characteristics	- 12.75 oz-in0.09 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$150.00
PKP525N03A-R3G	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 11.05 oz-in0.078 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$150.00
PKP525N03A-R3GL	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 11.05 oz-in0.078 N·m	- 0.35 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Line Driver	- Connector	- Not Equipped	- Single	$150.00
PKP525N07A-R3G	- 1.1 in28 mm	- Metric	- 5 mm	- 0.72º	Speed - Torque Characteristics	- 11.05 oz-in0.078 N·m	- 0.75 A/phase	- Round Shaft with Flat (No Gearhead)	-	- Voltage (TTL equivalent)	- Connector	- Not Equipped	- Single	$150.00
