DC Input AR Series 3.35 in. (85 mm) NEMA 34/3.54 in. (90 mm) Closed Loop Stepper Motors
3.35 in. (85 mm)/3.54 in. (90 mm) AR Series Closed Loop Stepper Motors
The AR Series stepper motor adopts our αSTEP technology closed loop control so the motor does not lose synchronism even when subjected to abrupt load fluctuation or acceleration. Requires αSTEP AR Series Driver.
- 3.35 in. (85 mm)/ 3.54 (90 mm) Frame Sizes
- Closed Loop
- DC Input
- Single or Double Shaft
- Geared Type Available
- Electromagnetic Brake Type Available
Item # |
Frame Size |
Driver Voltage Input Power |
Speed-Torque Characteristics |
Holding Torque |
Shaft/Gear Type |
Gear Ratio (X:1) |
Shaft |
Electromagnetic Brake |
Cable Direction |
Web Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ARM98AK ARM98AK/Asset/pcj_arm911ad.jpg | Frame Size 3.35 in | Driver Voltage Input Power DC |

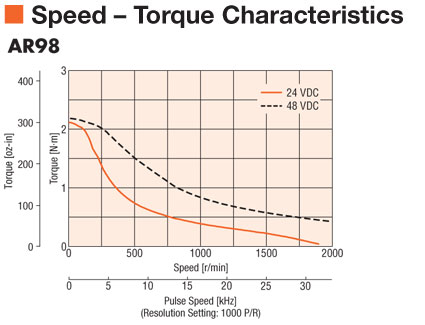

Speed-Torque Characteristics
 |
Holding Torque 280 oz-in | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $310.00 | CAD - ORIENTAL_2102665461:ARM98AK |
| ARM98AK-T3.6 ARM98AK-T3.6/Asset/pcj_arm98a-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

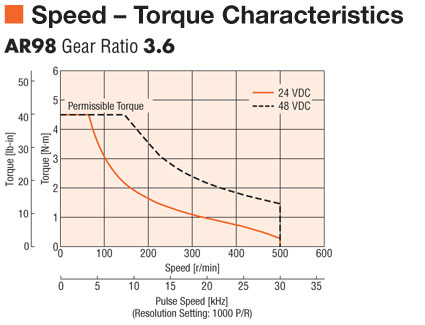

Speed-Torque Characteristics
 |
Holding Torque 624 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 3.6 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $484.00 | CAD - ORIENTAL_2102665461:ARM98AK-T3.6 |
| ARM98AK-T7.2 ARM98AK-T7.2/Asset/pcj_arm98a-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

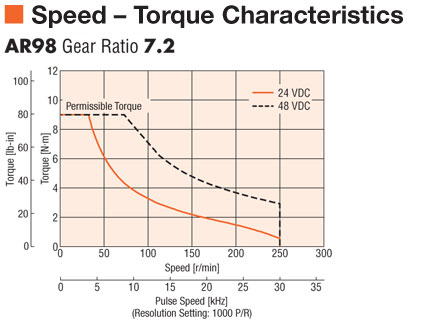

Speed-Torque Characteristics
 |
Holding Torque 1264 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 7.2 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $484.00 | CAD - ORIENTAL_2102665461:ARM98AK-T7.2 |
| ARM98AK-T10 ARM98AK-T10/Asset/pcj_arm98a-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

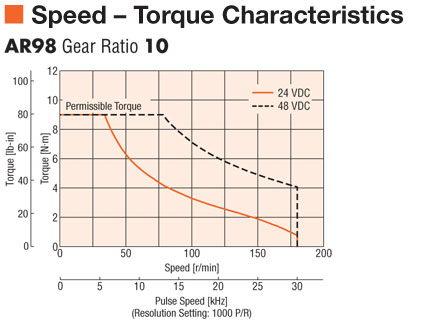

Speed-Torque Characteristics
 |
Holding Torque 1264 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 10 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $502.00 | CAD - ORIENTAL_2102665461:ARM98AK-T10 |
| ARM98AK-T20 ARM98AK-T20/Asset/pcj_arm98a-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

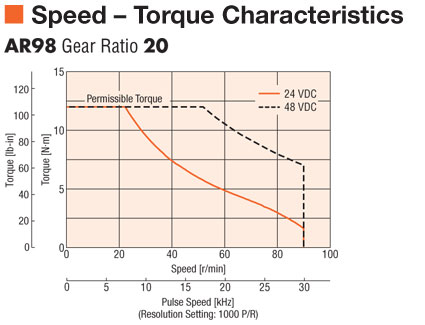

Speed-Torque Characteristics
 |
Holding Torque 1696 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 20 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $502.00 | CAD - ORIENTAL_2102665461:ARM98AK-T20 |

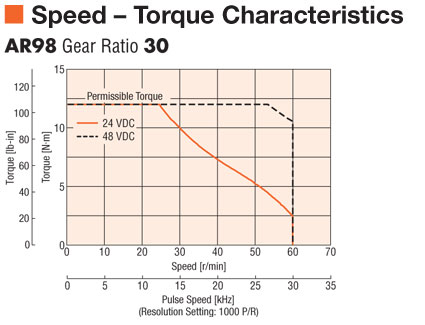

| ARM98AK-T30 ARM98AK-T30/Asset/pcj_arm98a-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
 |
Holding Torque 1696 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 30 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $502.00 | CAD - ORIENTAL_2102665461:ARM98AK-T30 |
| ARM98AK-N5 ARM98AK-N5/Asset/pcj_arm98a-nd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

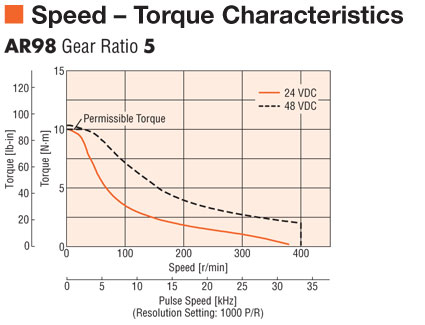

Speed-Torque Characteristics
 |
Holding Torque 1408 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 5 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,103.00 | CAD - ORIENTAL_2102665461:ARM98AK-N5 |
| ARM98AK-N7.2 ARM98AK-N7.2/Asset/pcj_arm98a-nd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

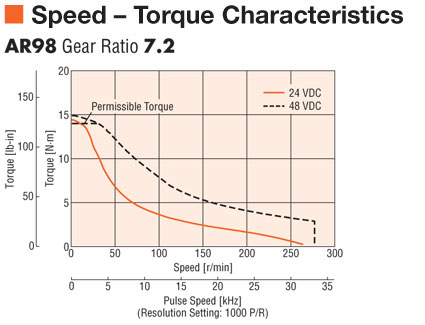

Speed-Torque Characteristics
 |
Holding Torque 1968 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 7.2 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,103.00 | CAD - ORIENTAL_2102665461:ARM98AK-N7.2 |
| ARM98AK-N10 ARM98AK-N10/Asset/pcj_arm98a-nd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

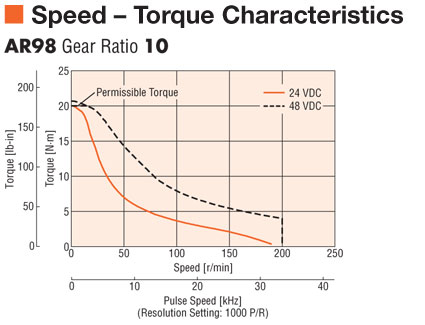

Speed-Torque Characteristics
 |
Holding Torque 2832 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 10 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,103.00 | CAD - ORIENTAL_2102665461:ARM98AK-N10 |

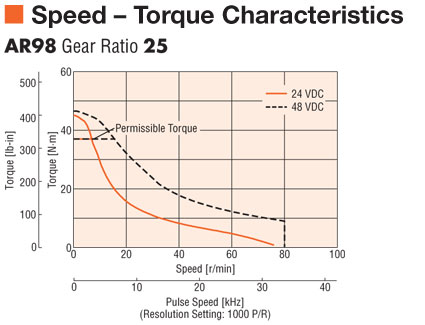

| ARM98AK-N25 ARM98AK-N25/Asset/pcj_arm98a-nd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
 |
Holding Torque 5120 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 25 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,228.00 | CAD - ORIENTAL_2102665461:ARM98AK-N25 |
| ARM98AK-N36 ARM98AK-N36/Asset/pcj_arm98a-nd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

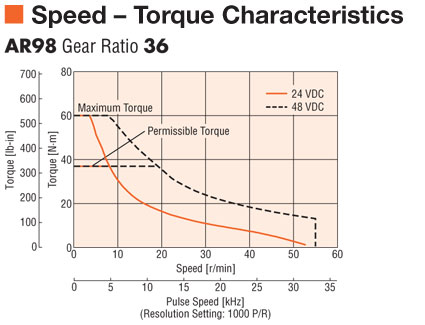

Speed-Torque Characteristics
 |
Holding Torque 5120 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 36 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,228.00 | CAD - ORIENTAL_2102665461:ARM98AK-N36 |
| ARM98AK-N50 ARM98AK-N50/Asset/pcj_arm98a-nd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

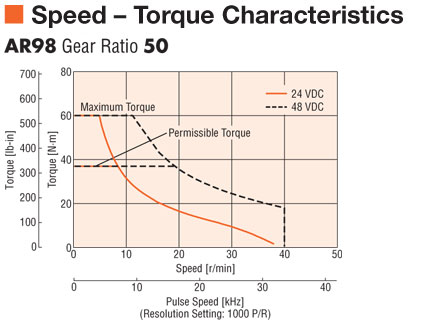

Speed-Torque Characteristics
 |
Holding Torque 5120 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 50 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,228.00 | CAD - ORIENTAL_2102665461:ARM98AK-N50 |
| ARM98AK-PS5 ARM98AK-PS5/Asset/pcj_arm98ac-ps10.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

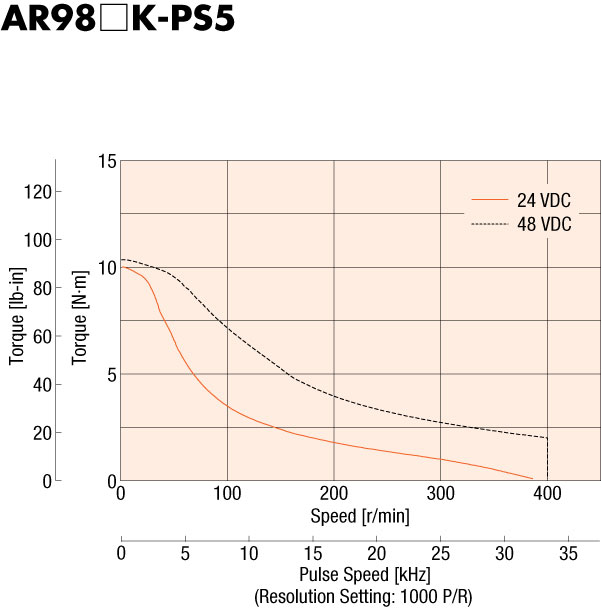

Speed-Torque Characteristics
 |
Holding Torque 1420 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 5 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $693.00 | CAD - ORIENTAL_2102665461:ARM98AK-PS5 |
| ARM98AK-PS7 ARM98AK-PS7/Asset/pcj_arm98ac-ps10.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

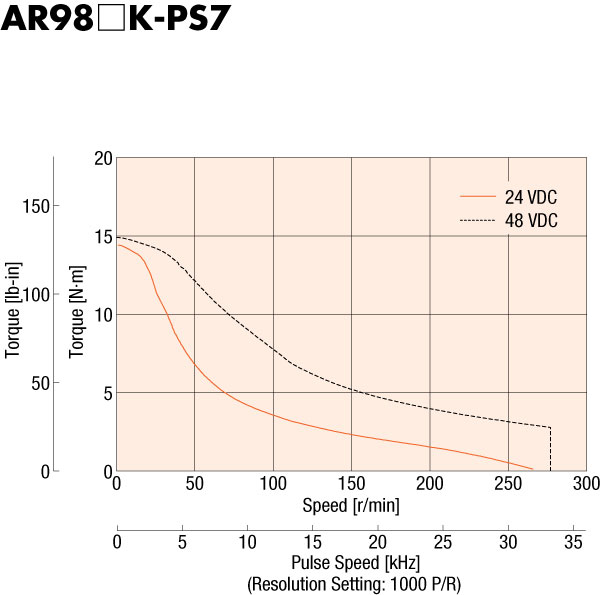

Speed-Torque Characteristics
 |
Holding Torque 1980 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 7.2 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $693.00 | CAD - ORIENTAL_2102665461:ARM98AK-PS7 |
| ARM98AK-PS10 ARM98AK-PS10/Asset/pcj_arm98ac-ps10.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

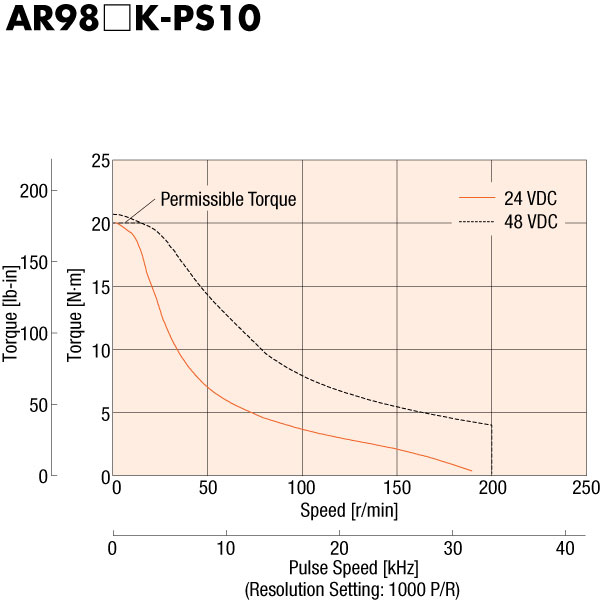

Speed-Torque Characteristics
 |
Holding Torque 2800 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 10 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $693.00 | CAD - ORIENTAL_2102665461:ARM98AK-PS10 |
| ARM98AK-PS25 ARM98AK-PS25/Asset/pcj_arm98ac-ps10.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
 |
Holding Torque 5200 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 25 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $824.00 | CAD - ORIENTAL_2102665461:ARM98AK-PS25 |
| ARM98AK-PS36 ARM98AK-PS36/Asset/pcj_arm98ac-ps10.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

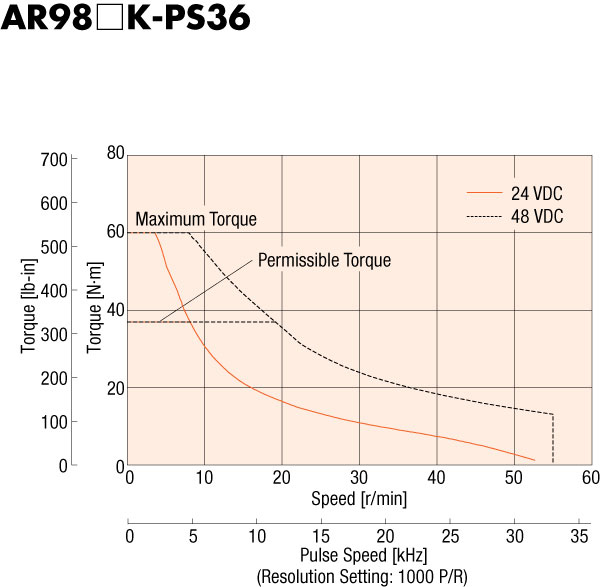

Speed-Torque Characteristics
 |
Holding Torque 5200 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 36 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $824.00 | CAD - ORIENTAL_2102665461:ARM98AK-PS36 |
| ARM98AK-PS50 ARM98AK-PS50/Asset/pcj_arm98ac-ps10.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

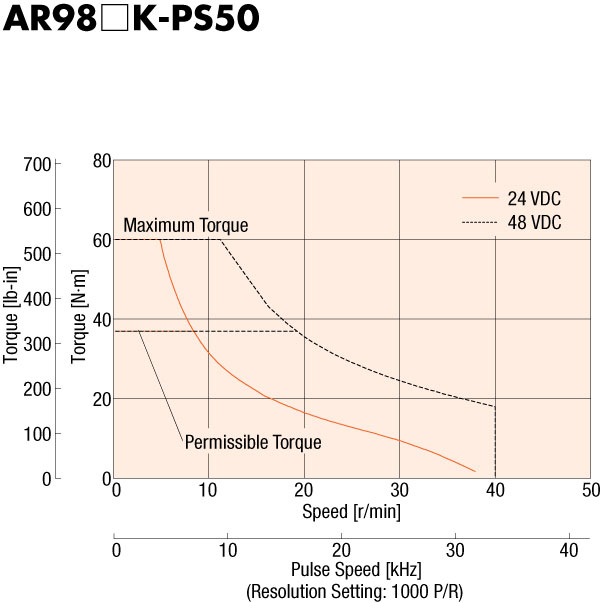

Speed-Torque Characteristics
 |
Holding Torque 5200 oz-in | Shaft/Gear Type Planetary Gear | Gear Ratio (X:1) 50 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $824.00 | CAD - ORIENTAL_2102665461:ARM98AK-PS50 |

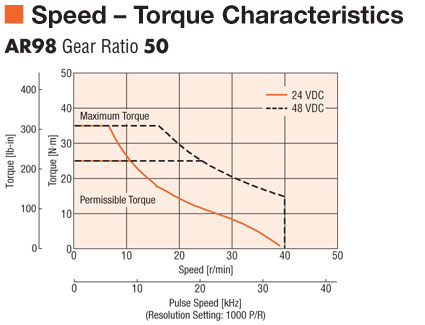

| ARM98AK-H50 ARM98AK-H50/Asset/pcj_arm98a-hd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
 |
Holding Torque 3520 oz-in | Shaft/Gear Type Harmonic Gear | Gear Ratio (X:1) 50 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,549.00 | CAD - ORIENTAL_2102665461:ARM98AK-H50 |
| ARM98AK-H100 ARM98AK-H100/Asset/pcj_arm98a-hd.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |

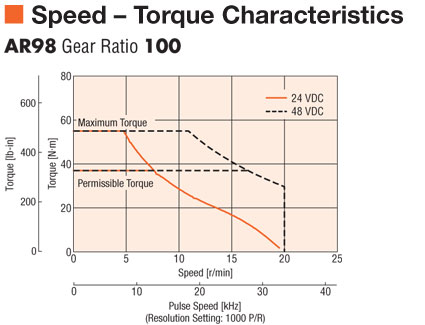

Speed-Torque Characteristics
 |
Holding Torque 5120 oz-in | Shaft/Gear Type Harmonic Gear | Gear Ratio (X:1) 100 :1 | Shaft Single | Electromagnetic Brake Not Equipped | Cable Direction - | $1,549.00 | CAD - ORIENTAL_2102665461:ARM98AK-H100 |
| ARM98BK ARM98BK/Asset/pcj_arm911ad.jpg | Frame Size 3.35 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
|
Holding Torque 280 oz-in | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Shaft Double | Electromagnetic Brake Not Equipped | Cable Direction - | $316.00 | CAD - ORIENTAL_2102665461:ARM98BK |
| ARM98MK ARM98MK/Asset/pcj_arm911md.jpg | Frame Size 3.35 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
|
Holding Torque 280 oz-in | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Shaft Single | Electromagnetic Brake Equipped | Cable Direction - | $546.00 | CAD - ORIENTAL_2102665461:ARM98MK |
| ARM98MK-T3.6 ARM98MK-T3.6/Asset/pcj_arm98m-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
|
Holding Torque 624 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 3.6 :1 | Shaft Single | Electromagnetic Brake Equipped | Cable Direction - | $722.00 | CAD - ORIENTAL_2102665461:ARM98MK-T3.6 |
| ARM98MK-T7.2 ARM98MK-T7.2/Asset/pcj_arm98m-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
|
Holding Torque 1264 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 7.2 :1 | Shaft Single | Electromagnetic Brake Equipped | Cable Direction - | $722.00 | CAD - ORIENTAL_2102665461:ARM98MK-T7.2 |
| ARM98MK-T10 ARM98MK-T10/Asset/pcj_arm98m-td.jpg | Frame Size 3.54 in | Driver Voltage Input Power DC |
Speed-Torque Characteristics
|
Holding Torque 1264 oz-in | Shaft/Gear Type Taper Hobbed Gear | Gear Ratio (X:1) 10 :1 | Shaft Single | Electromagnetic Brake Equipped | Cable Direction - | $738.00 | CAD - ORIENTAL_2102665461:ARM98MK-T10 |
