  • CSK5_top.jpg

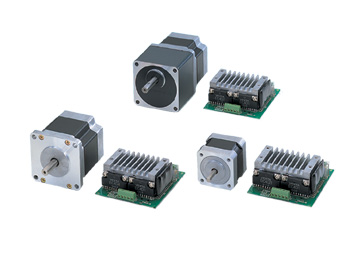

The CSK series combines a 5-phase stepper motor and a 24VDC input board-level driver to provide high torque, high resolution and low vibration in a compact package.
1 - 25 of 32 | Results Per Page | View | Unit of Measure
1 2

Item #

Item Name

Motor Frame Size

Power Supply

Gear Ratio (X:1)

Shaft/Gear Type

Shaft

Step Angle

Maximum Holding Torque (lb-in)

CAD

List Price

- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Single - 0.72 ° - 1.2 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Double - 0.72 ° - 1.2 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 3.6 :1 - TH Geared - Single - 0.20 ° - 3 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 3.6 :1 - TH Geared - Double - 0.20 ° - 3 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 7.2 :1 - TH Geared - Single - 0.10 ° - 6.10 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 7.2 :1 - TH Geared - Double - 0.10 ° - 6.10 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 10 :1 - TH Geared - Single - 0.072 ° - 8.80 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 10 :1 - TH Geared - Double - 0.072 ° - 8.80 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 20 :1 - TH Geared - Single - 0.036 ° - 13.20 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 20 :1 - TH Geared - Double - 0.036 ° - 13.20 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 30 :1 - TH Geared - Single - 0.024 ° - 13.20 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - 30 :1 - TH Geared - Double - 0.024 ° - 13.20 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Single - 0.72 ° - 1.6 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Double - 0.72 ° - 1.6 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Single - 0.72 ° - 2.1 - -
- 5-Phase Stepping System - 1.65 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Double - 0.72 ° - 2.1 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Single - 0.72 ° - 3.7 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - - Round Shaft (No Gearhead) - Double - 0.72 ° - 3.7 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - 3.6 :1 - TH Geared - Single - 0.20 ° - 11 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - 3.6 :1 - TH Geared - Double - 0.20 ° - 11 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - 7.2 :1 - TH Geared - Single - 0.10 ° - 22 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - 7.2 :1 - TH Geared - Double - 0.10 ° - 22 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - 10 :1 - TH Geared - Single - 0.072 ° - 26 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - 10 :1 - TH Geared - Double - 0.072 ° - 26 - -
- 5-Phase Stepping System - 2.36 in. sq. - 24 VDC - 20 :1 - TH Geared - Single - 0.036 ° - 30 - -
