These products have been discontinued, please contact your local sales office for more information.
1 - 25 of 39 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Basic Step Angle

  • 0.72º

Current per Phase (A/phase)

  • 0.75
  • 1.4

Gear Type

  • Taper Hobbed, Low Backlash (up to 45 arc min), Offset Shaft
  • Planetary, Low Backlash (up to 35 arc min), Centered Shaft
  • Harmonic, Non Backlash (0 arc min), Centered Shaft

Encoder

  • 500 P/R Differential, 3-Channel
  • 500 P/R TTL 3-Channel

Electromagnetic Brake

  • Not Equipped

Shaft

  • Single

Item #

Frame Size

Basic Step Angle

Speed-Torque Characteristics

Holding Torque

Current per Phase

Shaft/Gear Type

Gear Ratio (X:1)

Encoder Output

Electromagnetic Brake

Shaft

Web Price

- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 480 oz-in3.5 N·m - 0.75 A/phase - Harmonic Gear - 50 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 704 oz-in5 N·m - 0.75 A/phase - Harmonic Gear - 100 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 350 oz-in2.5 N·m - 0.75 A/phase - Planetary Gear - 25 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 36 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 50 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 48 oz-in0.35 N·m - 0.75 A/phase - Taper Hobbed Gear - 3.6 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 98 oz-in0.7 N·m - 0.75 A/phase - Taper Hobbed Gear - 7.2 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 141 oz-in1 N·m - 0.75 A/phase - Taper Hobbed Gear - 10 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 211 oz-in1.5 N·m - 0.75 A/phase - Taper Hobbed Gear - 20 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 211 oz-in1.5 N·m - 0.75 A/phase - Taper Hobbed Gear - 30 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º

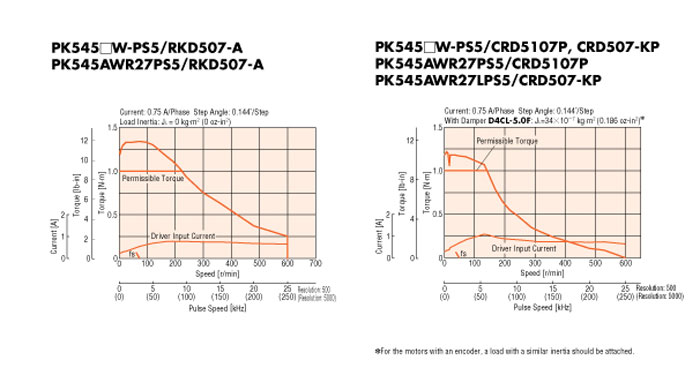

Speed-Torque Characteristics
 		- 142 oz-in1 N·m - 0.75 A/phase - Planetary Gear - 5 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º

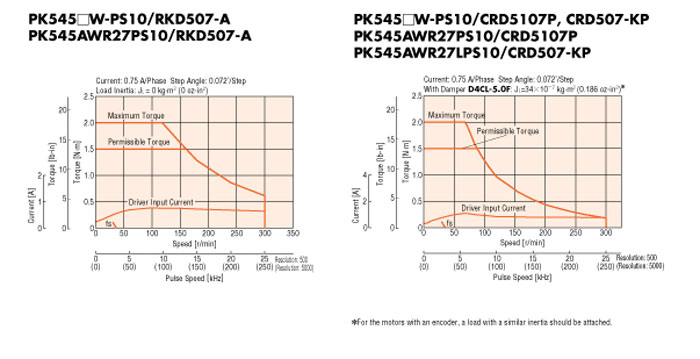

Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - 0.75 A/phase - Planetary Gear - 7.2 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 1.65 in42 mm - 0.72º
Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - 0.75 A/phase - Planetary Gear - 10 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 768 oz-in5.5 N·m - 1.4 A/phase - Harmonic Gear - 50 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 1120 oz-in8 N·m - 1.4 A/phase - Harmonic Gear - 100 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 1130 oz-in8 N·m - 1.4 A/phase - Planetary Gear - 25 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 1130 oz-in8 N·m - 1.4 A/phase - Planetary Gear - 36 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 1130 oz-in8 N·m - 1.4 A/phase - Planetary Gear - 50 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 176 oz-in1.25 N·m - 1.4 A/phase - Taper Hobbed Gear - 3.6 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 352 oz-in2.5 N·m - 1.4 A/phase - Taper Hobbed Gear - 7.2 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 416 oz-in3 N·m - 1.4 A/phase - Taper Hobbed Gear - 10 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 480 oz-in3.5 N·m - 1.4 A/phase - Taper Hobbed Gear - 20 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 560 oz-in4 N·m - 1.4 A/phase - Taper Hobbed Gear - 30 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 490 oz-in3.5 N·m - 1.4 A/phase - Planetary Gear - 5 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
- 2.36 in60 mm - 0.72º
Speed-Torque Characteristics
 		- 560 oz-in4 N·m - 1.4 A/phase - Planetary Gear - 7.2 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single Request Quote
