2.22 in. (56.4 mm) NEMA 23/2.36 in. (60 mm) NEMA 24 PKP Series 2-Phase Bipolar Stepper Motors

The high-torque PKP series, bipolar 2 phase stepper motors provide high torque, low vibration and noise with a 1.8º or 0.9º basic step angle.

2.22 in. (56.4 mm)/2.36 in. (60 mm) Frame Sizes
Current per Phase = 1.4 A ~ 4.2 A
Encoder or Brake types
Max. Holding Torque
Round Shaft Type = 85 ~ 440 oz-in (0.6 ~ 3.1 N·m)
Geared Type = 15.9 ~ 389 lb-in (1.8 ~ 44 N·m)

101 - 125 of 286 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Basic Step Angle

0..05º
0.1º
0.2º
0.25º
0.18º
0.5º
0.9º
1.8º

Motor Connection Type

Connector
Flat Connector
Lead Wire

Type

Flat
Standard
High-Torque
High-Resolution
Geared

Current per Phase (A/phase)

0.71
1.4
1.5
2.1
2.8
4.2

Shaft/Gear Type

Flat Harmonic Gear
Round Shaft with Flat (No Gearhead)
Spur Gear (Offset Shaft)
Spur Gear (Centered Shaft)
Planetary Gear

Gear Ratio (X:1) (:1)

Output Shaft

Imperial
Metric

Shaft

Single
Double

Encoder

200 P/R, 3-Channel
400 P/R, 3-Channel
1000 P/R, 3-Channel
None

Output Type

Line Driver
Voltage (TTL equivalent)

Electromagnetic Brake

Equipped
Not Equipped

Item #	Basic Step Angle	Motor Connection Type	Type	Frame Size	Speed-Torque Characteristics	Holding Torque	Current per Phase	Shaft/Gear Type	Gear Ratio (X:1)	Output Shaft	Output Shaft Diameter	Lost Motion	Shaft	Electromagnetic Brake	Web Price	CAD

PKP266D14A2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 896 oz-in6.3 N·m	- 1.4 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Single	- Not Equipped	$529.50	- ORIENTAL_2102665461:PKP266D14A2%20/%20PLE60-5B%20/%20P00028
PKP266D14B2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 896 oz-in6.3 N·m	- 1.4 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Double	- Not Equipped	$534.50	- ORIENTAL_2102665461:PKP266D14B2%20/%20PLE60-5B%20/%20P00028
PKP266D28A2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 896 oz-in6.3 N·m	- 2.8 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Single	- Not Equipped	$529.50	- ORIENTAL_2102665461:PKP266D28A2%20/%20PLE60-5B%20/%20P00028
PKP266D28B2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 896 oz-in6.3 N·m	- 2.8 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Double	- Not Equipped	$534.50	- ORIENTAL_2102665461:PKP266D28B2%20/%20PLE60-5B%20/%20P00028
PKP266D42A2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 896 oz-in6.3 N·m	- 4.2 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Single	- Not Equipped	$529.50	- ORIENTAL_2102665461:PKP266D42A2%20/%20PLE60-5B%20/%20P00028
PKP266D42B2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 896 oz-in6.3 N·m	- 4.2 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Double	- Not Equipped	$534.50	- ORIENTAL_2102665461:PKP266D42B2%20/%20PLE60-5B%20/%20P00028

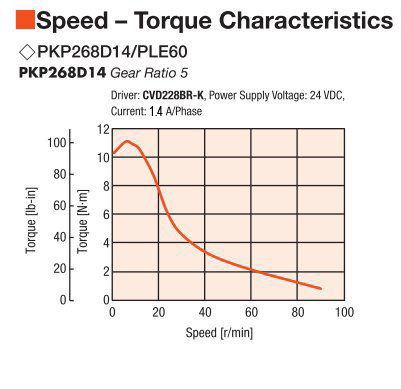

PKP268D14A2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 1600 oz-in11.25 N·m	- 1.4 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Single	- Not Equipped	$549.50	- ORIENTAL_2102665461:PKP268D14A2%20/%20PLE60-5B%20/%20P00028
PKP268D14B2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 1600 oz-in11.25 N·m	- 1.4 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Double	- Not Equipped	$552.50	- ORIENTAL_2102665461:PKP268D14B2%20/%20PLE60-5B%20/%20P00028
PKP268D28A2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 1600 oz-in11.25 N·m	- 2.8 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Single	- Not Equipped	$549.50	- ORIENTAL_2102665461:PKP268D28A2%20/%20PLE60-5B%20/%20P00028
PKP268D28B2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 1600 oz-in11.25 N·m	- 2.8 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Double	- Not Equipped	$552.50	- ORIENTAL_2102665461:PKP268D28B2%20/%20PLE60-5B%20/%20P00028
PKP268D42A2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 1600 oz-in11.25 N·m	- 4.2 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Single	- Not Equipped	$549.50	- ORIENTAL_2102665461:PKP268D42A2%20/%20PLE60-5B%20/%20P00028
PKP268D42B2 / PLE60-5B / P00028	- 1.8º	- Flat Connector	- Geared	- 2.22 in56.4 mm	Speed - Torque Characteristics	- 1600 oz-in11.25 N·m	- 4.2 A/phase	- Planetary Gear	- 5 :1	- Metric	- 14 mm	-	- Double	- Not Equipped	$552.50	- ORIENTAL_2102665461:PKP268D42B2%20/%20PLE60-5B%20/%20P00028
PKP264D14A2-CS5	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 184 oz-in1.3 N·m	- 1.4 A/phase	- Spur Gear (Centered Shaft)	- 5 :1	- Metric	- 10 mm	-	- Single	- Not Equipped	$216.00	- ORIENTAL_2102665461:PKP264D14A2-CS5
PKP264D14B2-CS5	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 184 oz-in1.3 N·m	- 1.4 A/phase	- Spur Gear (Centered Shaft)	- 5 :1	- Metric	- 10 mm	-	- Double	- Not Equipped	$219.00	- ORIENTAL_2102665461:PKP264D14B2-CS5

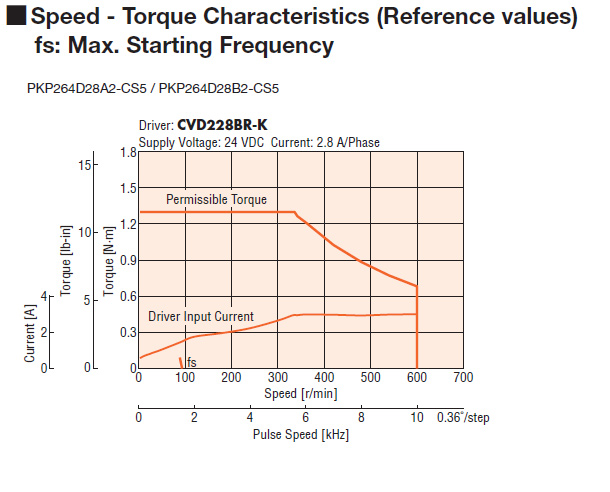

PKP264D28A2-CS5	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 184 oz-in1.3 N·m	- 2.8 A/phase	- Spur Gear (Centered Shaft)	- 5 :1	- Metric	- 10 mm	-	- Single	- Not Equipped	$216.00	- ORIENTAL_2102665461:PKP264D28A2-CS5
PKP264D28B2-CS5	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 184 oz-in1.3 N·m	- 2.8 A/phase	- Spur Gear (Centered Shaft)	- 5 :1	- Metric	- 10 mm	-	- Double	- Not Equipped	$219.00	- ORIENTAL_2102665461:PKP264D28B2-CS5
PKP264D14A2-SG7.2	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 283.2 oz-in2 N·m	- 1.4 A/phase	- Spur Gear (Offset Shaft)	- 7.2 :1	- Metric	- 8 mm	-	- Single	- Not Equipped	$167.00	- ORIENTAL_2102665461:PKP264D14A2-SG7.2
PKP264D14B2-SG7.2	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 283.2 oz-in2 N·m	- 1.4 A/phase	- Spur Gear (Offset Shaft)	- 7.2 :1	- Metric	- 8 mm	-	- Double	- Not Equipped	$169.00	- ORIENTAL_2102665461:PKP264D14B2-SG7.2
PKP264D28A2-SG7.2	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 283.2 oz-in2 N·m	- 2.8 A/phase	- Spur Gear (Offset Shaft)	- 7.2 :1	- Metric	- 8 mm	-	- Single	- Not Equipped	$167.00	- ORIENTAL_2102665461:PKP264D28A2-SG7.2
PKP264D28B2-SG7.2	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 283.2 oz-in2 N·m	- 2.8 A/phase	- Spur Gear (Offset Shaft)	- 7.2 :1	- Metric	- 8 mm	-	- Double	- Not Equipped	$169.00	- ORIENTAL_2102665461:PKP264D28B2-SG7.2
PKP264D28A2-SG7.2-R3FL	- 0.25º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 283.2 oz-in2 N·m	- 2.8 A/phase	- Spur Gear (Offset Shaft)	- 7.2 :1	- Metric	- 8 mm	-	- Single	- Not Equipped	$244.00	-
PKP264D28A2-SG7.2-R3F	- 0.25º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 283.2 oz-in2 N·m	- 2.8 A/phase	- Spur Gear (Offset Shaft)	- 7.2 :1	- Metric	- 8 mm	-	- Single	- Not Equipped	$244.00	-
PKP264D14A2-SG9	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 352 oz-in2.5 N·m	- 1.4 A/phase	- Spur Gear (Offset Shaft)	- 9 :1	- Metric	- 8 mm	-	- Single	- Not Equipped	$167.00	- ORIENTAL_2102665461:PKP264D14A2-SG9
PKP264D14B2-SG9	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 352 oz-in2.5 N·m	- 1.4 A/phase	- Spur Gear (Offset Shaft)	- 9 :1	- Metric	- 8 mm	-	- Double	- Not Equipped	$169.00	- ORIENTAL_2102665461:PKP264D14B2-SG9
PKP264D28A2-SG9	- 1.8º	- Flat Connector	- Geared	- 2.36 in60 mm	Speed - Torque Characteristics	- 352 oz-in2.5 N·m	- 2.8 A/phase	- Spur Gear (Offset Shaft)	- 9 :1	- Metric	- 8 mm	-	- Single	- Not Equipped	$167.00	- ORIENTAL_2102665461:PKP264D28A2-SG9
