αSTEP Stepper Motors Brushless DC Motors Servo Motors AC Gear Motors Linear Actuators Rotary Actuators Network Products Cooling Fans

  • Stepper Motor
The CMK Series is a motor and driver package consisting of a stepper motor and one of the smallest, lightest 24 VDC input microstepping drivers in the industry, allowing for a reduction in size and vibration in your equipment. There are 5 preset step angles with a maximum microstep resolution of 16 divisions. Operating current is set by a digital switch that is easy to use.
  • Compact driver
  • Standard performance
  • Encoder options
  • Geared option
  • Resolution - 1.8º ~ 0.1125º [5 steps] (Microstep)
  • 24 VDC power supply input
  • RoHS compliant
76 - 100 of 214 | Results Per Page | View | Unit of Measure
 1 2 3 4 5 »
Request Information Compare Items Search by Specification

Item #

Frame Size

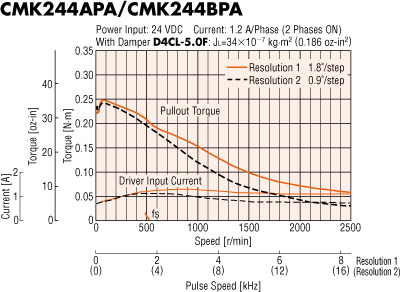

Speed-Torque Characteristics

Holding Torque

Shaft/Gear Type

Gear Ratio (X:1)

Encoder Output

Power Supply

Shaft

Basic Step Angle

Web Price

- 1.65 in42 mm
Speed - Torque Characteristics
 		- 70 oz-in0.5 N·m - Spur Gear (Offset Shaft) - 9 :1 - 400 P/R, 3-Channel - 24 VDC - Single - 0.2º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 200 P/R, 2-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 400 P/R, 2-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 200 P/R, 3-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 400 P/R, 3-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Double - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Single - 0.9º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 200 P/R, 2-Channel - 24 VDC - Single - 0.9º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 400 P/R, 2-Channel - 24 VDC - Single - 0.9º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 200 P/R, 3-Channel - 24 VDC - Single - 0.9º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - 400 P/R, 3-Channel - 24 VDC - Single - 0.9º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 36 oz-in0.26 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Double - 0.9º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 55 oz-in0.4 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 55 oz-in0.4 N·m - Round Shaft (No Gearhead) - - 200 P/R, 2-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 55 oz-in0.4 N·m - Round Shaft (No Gearhead) - - 400 P/R, 2-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 55 oz-in0.4 N·m - Round Shaft (No Gearhead) - - 200 P/R, 3-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 55 oz-in0.4 N·m - Round Shaft (No Gearhead) - - 400 P/R, 3-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 55 oz-in0.4 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Double - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - Round Shaft (No Gearhead) - - 200 P/R, 2-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - Round Shaft (No Gearhead) - - 400 P/R, 2-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - Round Shaft (No Gearhead) - - 200 P/R, 3-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - Round Shaft (No Gearhead) - - 400 P/R, 3-Channel - 24 VDC - Single - 1.8º Request Quote
- 1.65 in42 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - Round Shaft (No Gearhead) - - - 24 VDC - Double - 1.8º Request Quote
76 - 100 of 214 | Results Per Page | View | Unit of Measure
 1 2 3 4 5 »
