αSTEP Stepper Motors Brushless DC Motors Servo Motors AC Gear Motors Linear Actuators Rotary Actuators Network Products Cooling Fans

  • CRK+-top
The CRK Series with a built in controller is a compact, space saving stepper motor and driver package with a powerful, feature-rich controller built in. The driver supports stand alone or RS-485 communications with multi-drop capability for network operation and I/O control.
  • RS-485 Communications
  • Lowest vibration motor performance
  • Multi-drop up to 16 units
  • High-torque / High-resolution motor options
  • DIN Rail mount
  • GUI software available
  • Encoder options
  • Geared options
  • Resolution - 1.8º ~ 0.00288º [25 steps] (Microstep)
  • 24 VDC power supply input
  • RoHS compliant
Learn More
51 - 75 of 157 | Results Per Page | View | Unit of Measure
 1 2 3 4 5 »
Request Information Compare Items Search by Specification

Item #

Return Policy

Frame Size

Speed-Torque Characteristics

Holding Torque

Shaft/Gear Type

Gear Ratio (X:1)

Electromagnetic Brake

Shaft

Power Supply

Excitation Mode

Web Price

UPC Code

- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm

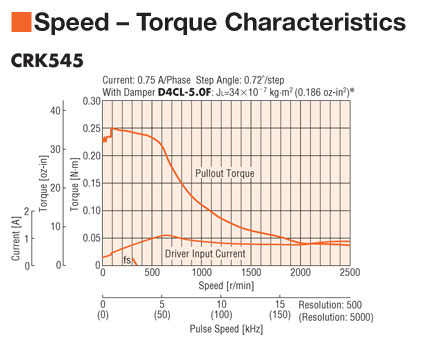

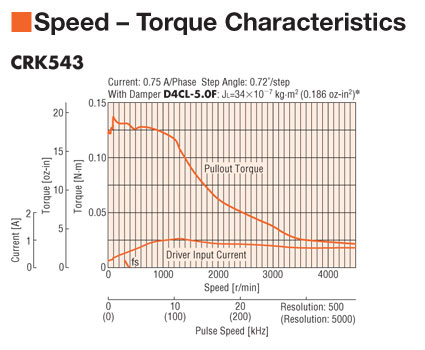

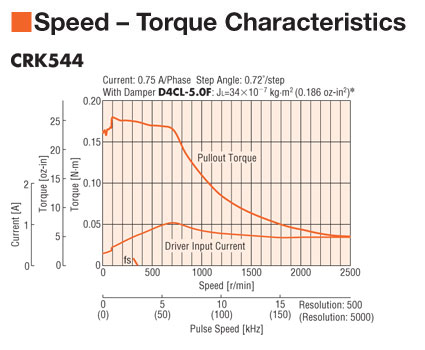

Speed-Torque Characteristics
 		- 704 oz-in5 N·m - Harmonic Gear - 100 :1 - Not Equipped - Single - 24 VDC - Request Quote -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed-Torque Characteristics
 		- 350 oz-in2.5 N·m - Planetary Gear - 25 :1 - Not Equipped - Single - 24 VDC - Request Quote -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - Planetary Gear - 36 :1 - Not Equipped - Single - 24 VDC - Request Quote -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - Planetary Gear - 50 :1 - Not Equipped - Single - 24 VDC - Request Quote -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed-Torque Characteristics
 		- 142 oz-in1 N·m - Planetary Gear - 5 :1 - Not Equipped - Single - 24 VDC - Request Quote -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - Planetary Gear - 7.2 :1 - Not Equipped - Single - 24 VDC - Request Quote -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - Planetary Gear - 10 :1 - Not Equipped - Single - 24 VDC - Request Quote -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 18.4 oz-in0.13 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $515.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 25 oz-in0.18 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $516.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 18.4 oz-in0.13 N·m - Round Shaft (No Gearhead) - - Not Equipped - Double - 24 VDC - $518.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 25 oz-in0.18 N·m - Round Shaft (No Gearhead) - - Not Equipped - Double - 24 VDC - $519.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 34 oz-in0.24 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $524.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 34 oz-in0.24 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $527.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 34 oz-in0.24 N·m - Round Shaft (No Gearhead) - - Not Equipped - Double - 24 VDC - $528.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 34 oz-in0.24 N·m - Round Shaft (No Gearhead) - - Not Equipped - Double - 24 VDC - $529.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 34 oz-in0.24 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $537.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 59 oz-in0.42 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $537.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 34 oz-in0.24 N·m - Round Shaft (No Gearhead) - - Not Equipped - Double - 24 VDC - $541.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 59 oz-in0.42 N·m - Round Shaft (No Gearhead) - - Not Equipped - Double - 24 VDC - $541.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 59 oz-in0.42 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $549.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 59 oz-in0.42 N·m - Round Shaft (No Gearhead) - - Not Equipped - Double - 24 VDC - $553.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 18.4 oz-in0.13 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $653.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 25 oz-in0.18 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $655.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 34 oz-in0.24 N·m - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - $663.00 -
- This product cannot be cancelled or returned once the order has been processed. - 1.65 in42 mm
Speed - Torque Characteristics
 		- 48 oz-in0.35 N·m - Taper Hobbed Gear - 3.6 :1 - Not Equipped - Single - 24 VDC - $681.00 -
