The PKP series 5-phase stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.
Item # |
Frame Size |
Basic Step Angle |
Speed-Torque Characteristics |
Holding Torque |
Current per Phase |
Shaft/Gear Type |
Gear Ratio (X:1) |
Motor Connection Type |
Electromagnetic Brake |
Shaft |
Output Shaft |
Output Shaft Diameter |
Web Price |
CAD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PKP543N18A2-R3GL PKP543N18A2-R3GL/Asset/pkp54_n18a2-r3g_-img.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.72º |
Speed-Torque Characteristics
![]() |
Holding Torque - 31 oz-in0.22 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $145.00 | CAD - |
PKP544N18A2-R3G PKP544N18A2-R3G/Asset/pkp54_n18a2-r3g_-img.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.72º |

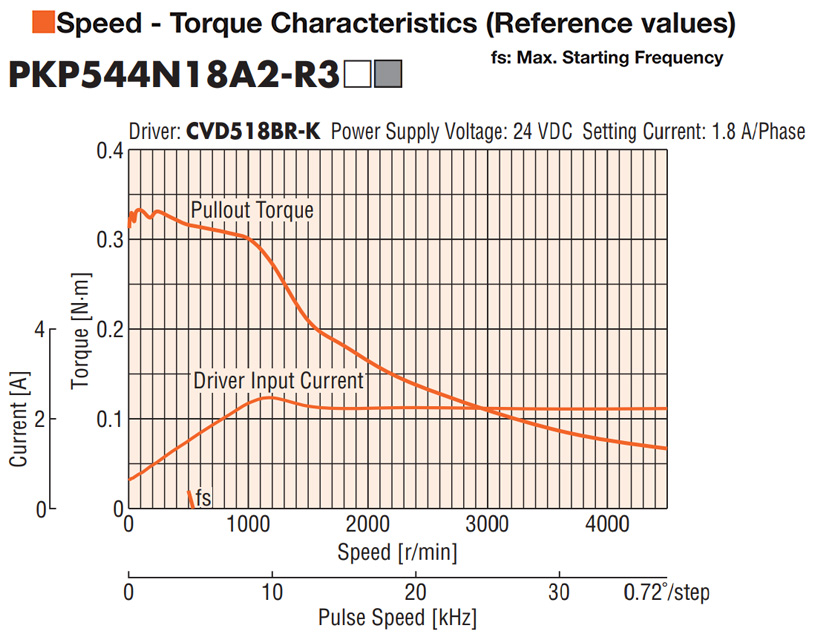

Speed-Torque Characteristics
![]() |
Holding Torque - 42 oz-in0.3 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $147.00 | CAD - |
PKP544N18A2-R3GL PKP544N18A2-R3GL/Asset/pkp54_n18a2-r3g_-img.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.72º |
Speed-Torque Characteristics
![]() |
Holding Torque - 42 oz-in0.3 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $147.00 | CAD - |
PKP545N18A2-R3G PKP545N18A2-R3G/Asset/pkp54_n18a2-r3g_-img.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.72º |
Speed-Torque Characteristics
![]() |
Holding Torque - 52 oz-in0.37 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $156.00 | CAD - |
PKP545N18A2-R3GL PKP545N18A2-R3GL/Asset/pkp54_n18a2-r3g_-img.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.72º |
Speed-Torque Characteristics
![]() |
Holding Torque - 52 oz-in0.37 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $156.00 | CAD - |
PKP546N18A2-R3G PKP546N18A2-R3G/Asset/pkp54_n18a2-r3g_-img.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.72º |
Speed-Torque Characteristics
![]() |
Holding Torque - 71 oz-in0.5 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $159.00 | CAD - |
PKP546N18A2-R3GL PKP546N18A2-R3GL/Asset/pkp54_n18a2-r3g_-img.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.72º |
Speed-Torque Characteristics
![]() |
Holding Torque - 71 oz-in0.5 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $159.00 | CAD - |
PKP544MN18A-R3J PKP544MN18A-R3J/Asset/pk5-12.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.36º |
Speed-Torque Characteristics
![]() |
Holding Torque - 37 oz-in0.26 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $141.00 | CAD - |
PKP544MN18A-R3JL PKP544MN18A-R3JL/Asset/pk5-12.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.36º |
Speed-Torque Characteristics
![]() |
Holding Torque - 37 oz-in0.26 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $141.00 | CAD - |
PKP546MN18A-R3J PKP546MN18A-R3J/Asset/pk5-12.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.36º |
Speed-Torque Characteristics
![]() |
Holding Torque - 62 oz-in0.44 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $152.00 | CAD - |
PKP546MN18A-R3JL PKP546MN18A-R3JL/Asset/pk5-12.jpg | Frame Size - 1.65 in42 mm | Basic Step Angle - 0.36º |
Speed-Torque Characteristics
![]() |
Holding Torque - 62 oz-in0.44 N·m | Current per Phase - 1.8 A/phase | Shaft/Gear Type - Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Motor Connection Type - Flat Connector | Electromagnetic Brake - Not Equipped | Shaft - Single | Output Shaft - Metric | Output Shaft Diameter - 5 mm | $152.00 | CAD - |
