The αSTEP AZ Series stepper motor offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Mechanical Absolute Encoder, absolute-type positioning is available, without battery back-up or external sensors to buy. Requires αSTEP AZ Series Driver.
Item # |
Frame Size |
Driver Voltage Input Power |
Speed-Torque Characteristics |
Holding Torque |
Shaft/Gear Type |
Gear Ratio (X:1) |
Shaft |
Electromagnetic Brake |
Connection Type |
Cable Direction |
Web Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AZM66MC-TS30 AZM66MC-TS30/Asset/azm66ac-ts_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 849 oz-in6 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 30 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $892.00 | CAD - ORIENTAL_2102665461:AZM66MC-TS30 |
| AZM66MC-PS5 AZM66MC-PS5/Asset/azm66ac-ps_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 495 oz-in3.50 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 5 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,067.00 | CAD - ORIENTAL_2102665461:AZM66MC-PS5 |
| AZM66MC-PS7.2 AZM66MC-PS7.2/Asset/azm66ac-ps_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 566 oz-in4 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 7.2 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,067.00 | CAD - ORIENTAL_2102665461:AZM66MC-PS7.2 |
| AZM66MC-PS10 AZM66MC-PS10/Asset/azm66ac-ps_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 708 oz-in5 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,067.00 | CAD - ORIENTAL_2102665461:AZM66MC-PS10 |
| AZM66MC-PS25 AZM66MC-PS25/Asset/azm66ac-ps_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1132 oz-in8 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 25 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,163.00 | CAD - ORIENTAL_2102665461:AZM66MC-PS25 |
| AZM66MC-PS36 AZM66MC-PS36/Asset/azm66ac-ps_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1132 oz-in8 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 36 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,163.00 | CAD - ORIENTAL_2102665461:AZM66MC-PS36 |
| AZM66MC-PS50 AZM66MC-PS50/Asset/azm66ac-ps_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1132 oz-in8 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 50 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,163.00 | CAD - ORIENTAL_2102665461:AZM66MC-PS50 |
| AZM66MC-HP5 AZM66MC-HP5/Asset/azm66ac-hp_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 835 oz-in5.90 N·m | Shaft/Gear Type - Harmonic Planetary Gear | Gear Ratio (X:1) - 5 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,401.00 | CAD - ORIENTAL_2102665461:AZM66MC-HP5 |
| AZM66MC-HP15 AZM66MC-HP15/Asset/azm66ac-hp_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1274 oz-in9 N·m | Shaft/Gear Type - Harmonic Planetary Gear | Gear Ratio (X:1) - 15 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,610.00 | CAD - ORIENTAL_2102665461:AZM66MC-HP15 |
| AZM66MC-HP5F AZM66MC-HP5F/Asset/azm66ac-hp_f-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 835 oz-in5.90 N·m | Shaft/Gear Type - Harmonic Planetary Gear (Flange Output) | Gear Ratio (X:1) - 5 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,378.00 | CAD - ORIENTAL_2102665461:AZM66MC-HP5F |
| AZM66MC-HP15F AZM66MC-HP15F/Asset/azm66ac-hp_f-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 1274 oz-in9 N·m | Shaft/Gear Type - Harmonic Planetary Gear (Flange Output) | Gear Ratio (X:1) - 15 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,588.00 | CAD - ORIENTAL_2102665461:AZM66MC-HP15F |
| AZM66MC-HS50 AZM66MC-HS50/Asset/azm66ac-hs_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 991 oz-in7 N·m | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 50 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,715.00 | CAD - ORIENTAL_2102665461:AZM66MC-HS50 |
| AZM66MC-HS100 AZM66MC-HS100/Asset/azm66ac-hs_-img.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1416 oz-in10 N·m | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 100 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,715.00 | CAD - ORIENTAL_2102665461:AZM66MC-HS100 |
| AZM66A0C / PLE60-5A / P00025 AZM66A0C / PLE60-5A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 849.7 oz-in6 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 5 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $775.50 | CAD - ORIENTAL_2102665461:AZM66A0C%20/%20PLE60-5A%20/%20P00025 |
| AZM66A0C / PLE60-10A / P00025 AZM66A0C / PLE60-10A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1699.3 oz-in12 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $775.50 | CAD - ORIENTAL_2102665461:AZM66A0C%20/%20PLE60-10A%20/%20P00025 |
| AZM66A0C / PLE60-20A / P00025 AZM66A0C / PLE60-20A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 3540.3 oz-in25 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 20 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $854.50 | CAD - ORIENTAL_2102665461:AZM66A0C%20/%20PLE60-20A%20/%20P00025 |
| AZM66A0C / PLE60-40A / P00025 AZM66A0C / PLE60-40A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 5664.5 oz-in40 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 40 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $854.50 | CAD - ORIENTAL_2102665461:AZM66A0C%20/%20PLE60-40A%20/%20P00025 |
| AZM66M0C / PLE60-5A / P00025 AZM66M0C / PLE60-5A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 849.7 oz-in6 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 5 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,021.50 | CAD - ORIENTAL_2102665461:AZM66M0C%20/%20PLE60-5A%20/%20P00025 |
| AZM66M0C / PLE60-10A / P00025 AZM66M0C / PLE60-10A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 1699.3 oz-in12 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,021.50 | CAD - ORIENTAL_2102665461:AZM66M0C%20/%20PLE60-10A%20/%20P00025 |
| AZM66M0C / PLE60-20A / P00025 AZM66M0C / PLE60-20A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 3540.3 oz-in25 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 20 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,100.50 | CAD - ORIENTAL_2102665461:AZM66M0C%20/%20PLE60-20A%20/%20P00025 |
| AZM66M0C / PLE60-40A / P00025 AZM66M0C / PLE60-40A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 5664.5 oz-in40 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 40 :1 | Shaft - Single | Electromagnetic Brake - Equipped | Connection Type - Cable | Cable Direction - | $1,100.50 | CAD - ORIENTAL_2102665461:AZM66M0C%20/%20PLE60-40A%20/%20P00025 |
| AZM69A0C / PLE60-5A / P00025 AZM69A0C / PLE60-5A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |

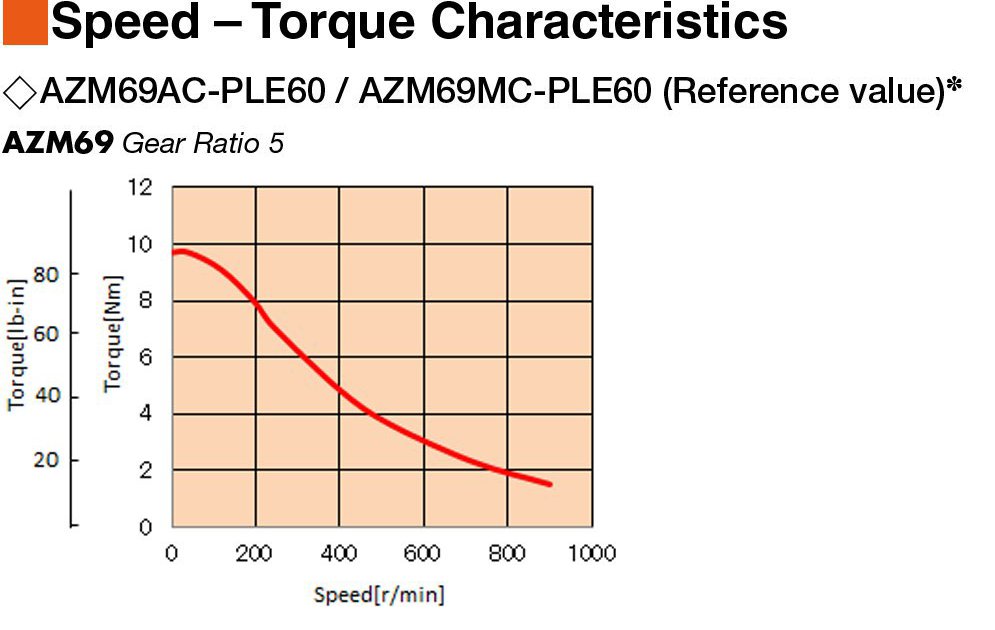

Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1359.5 oz-in9.6 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 5 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $780.50 | CAD - ORIENTAL_2102665461:AZM69A0C%20/%20PLE60-5A%20/%20P00025 |
| AZM69A0C / PLE60-10A / P00025 AZM69A0C / PLE60-10A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 2124.2 oz-in15 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 10 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $780.50 | CAD - ORIENTAL_2102665461:AZM69A0C%20/%20PLE60-10A%20/%20P00025 |
| AZM69A0C / PLE60-20A / P00025 AZM69A0C / PLE60-20A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 5423.7 oz-in38.3 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 20 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $859.50 | CAD - ORIENTAL_2102665461:AZM69A0C%20/%20PLE60-20A%20/%20P00025 |
| AZM69A0C / PLE60-40A / P00025 AZM69A0C / PLE60-40A / P00025/Asset/azm66-ple-600px.jpg | Frame Size - 2.36 in60 mm | Driver Voltage Input Power - AC |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 5664.5 oz-in40 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 40 :1 | Shaft - Single | Electromagnetic Brake - Not Equipped | Connection Type - Cable | Cable Direction - | $859.50 | CAD - ORIENTAL_2102665461:AZM69A0C%20/%20PLE60-40A%20/%20P00025 |
