AC Input AR Series 1.65 in. (42 mm) NEMA 17 Closed Loop Stepper Motors

The AR Series stepper motor adopts our αSTEP technology closed loop control so the motor does not lose synchronism even when subjected to abrupt load fluctuation or acceleration. Requires αSTEP AR Series Driver.

1.65 in. (42 mm) Frame Size
Closed Loop
AC Input
Single or Double Shaft
Geared Type Available
Electromagnetic Brake Type Available

26 - 43 of 43 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Shaft/Gear Type

Round Shaft with Flat (No Gearhead)
Right-Angle Spur / Face Gear
Taper Hobbed Gear
Planetary Gear
Harmonic Gear

Cable Direction

Down
Up

Gear Ratio (X:1) (:1)

Shaft

Single
Double

Electromagnetic Brake

Equipped
Not Equipped

Item #	Frame Size	Driver Voltage Input Power	Speed-Torque Characteristics	Holding Torque	Shaft/Gear Type	Cable Direction	Gear Ratio (X:1)	Shaft	Electromagnetic Brake	Web Price	CAD

ARM46MC-N7.2	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Planetary Gear	-	- 7.2 :1	- Single	- Equipped	$748.00	- ORIENTAL_2102665461:ARM46MC-N7.2
ARM46MC-N10	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 211 oz-in1.5 N·m	- Planetary Gear	-	- 10 :1	- Single	- Equipped	$748.00	- ORIENTAL_2102665461:ARM46MC-N10
ARM46MC-PS5	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 142 oz-in1 N·m	- Planetary Gear	-	- 5 :1	- Single	- Equipped	$650.00	- ORIENTAL_2102665461:ARM46MC-PS5
ARM46MC-PS7	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 210 oz-in1.5 N·m	- Planetary Gear	-	- 7.2 :1	- Single	- Equipped	$650.00	- ORIENTAL_2102665461:ARM46MC-PS7
ARM46MC-PS10	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 210 oz-in1.5 N·m	- Planetary Gear	-	- 10 :1	- Single	- Equipped	$650.00	- ORIENTAL_2102665461:ARM46MC-PS10
ARM46MC-PS25	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 350 oz-in2.5 N·m	- Planetary Gear	-	- 25 :1	- Single	- Equipped	$706.00	- ORIENTAL_2102665461:ARM46MC-PS25
ARM46MC-PS36	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 420 oz-in3 N·m	- Planetary Gear	-	- 36 :1	- Single	- Equipped	$706.00	- ORIENTAL_2102665461:ARM46MC-PS36
ARM46MC-PS50	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 420 oz-in3 N·m	- Planetary Gear	-	- 50 :1	- Single	- Equipped	$706.00	- ORIENTAL_2102665461:ARM46MC-PS50
ARM46MC-H50	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 480 oz-in3.5 N·m	- Harmonic Gear	-	- 50 :1	- Single	- Equipped	$968.00	- ORIENTAL_2102665461:ARM46MC-H50
ARM46MC-H100	- 1.65 in42 mm	- AC	Speed - Torque Characteristics	- 704 oz-in5 N·m	- Harmonic Gear	-	- 100 :1	- Single	- Equipped	$968.00	- ORIENTAL_2102665461:ARM46MC-H100

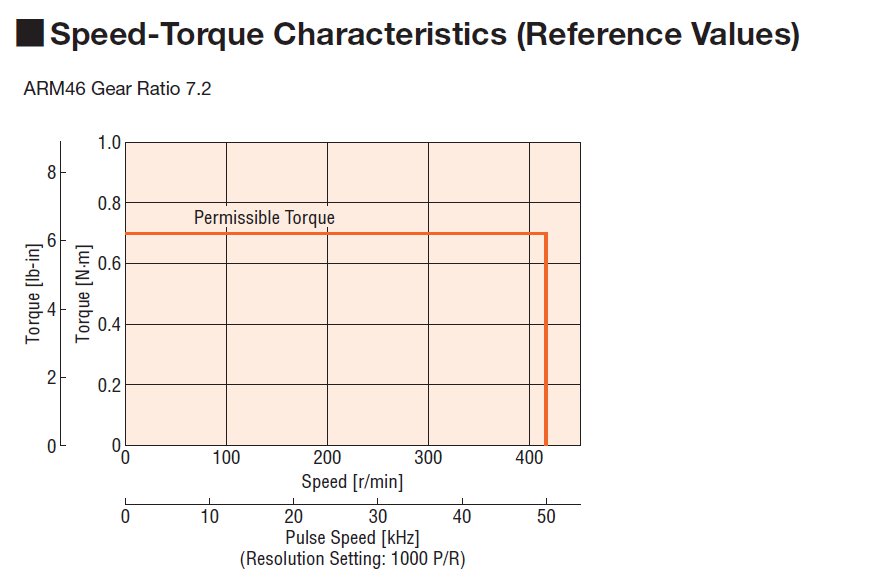

ARM46AC-FC7.2RA	- 1.65 in42 mm	- AC		- 99 oz-in0.7 N·m	- Right-Angle Spur / Face Gear	- Up	- 7.2 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC7.2RA
ARM46AC-FC7.2LA	- 1.65 in42 mm	- AC		- 99 oz-in0.7 N·m	- Right-Angle Spur / Face Gear	- Down	- 7.2 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC7.2LA

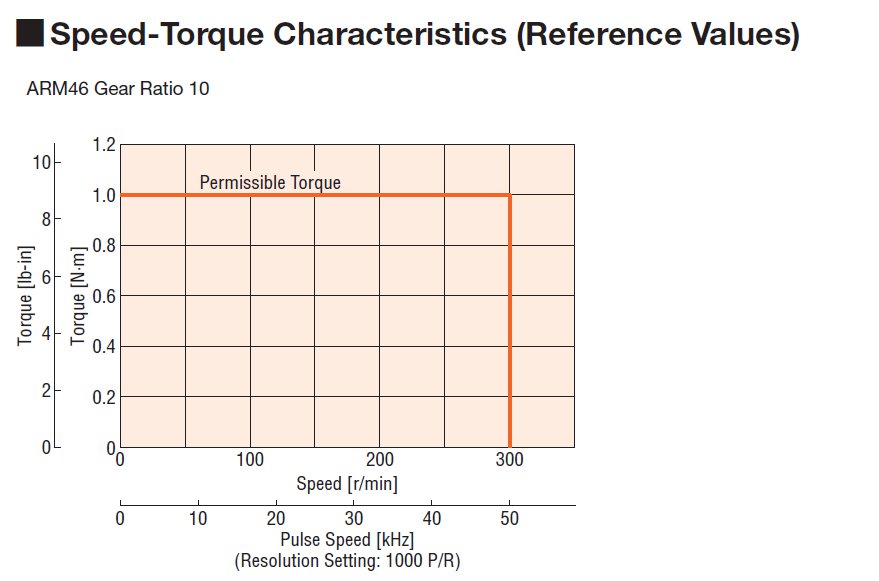

ARM46AC-FC10RA	- 1.65 in42 mm	- AC		- 142 oz-in1 N·m	- Right-Angle Spur / Face Gear	- Up	- 10 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC10RA
ARM46AC-FC10LA	- 1.65 in42 mm	- AC		- 142 oz-in1 N·m	- Right-Angle Spur / Face Gear	- Down	- 10 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC10LA

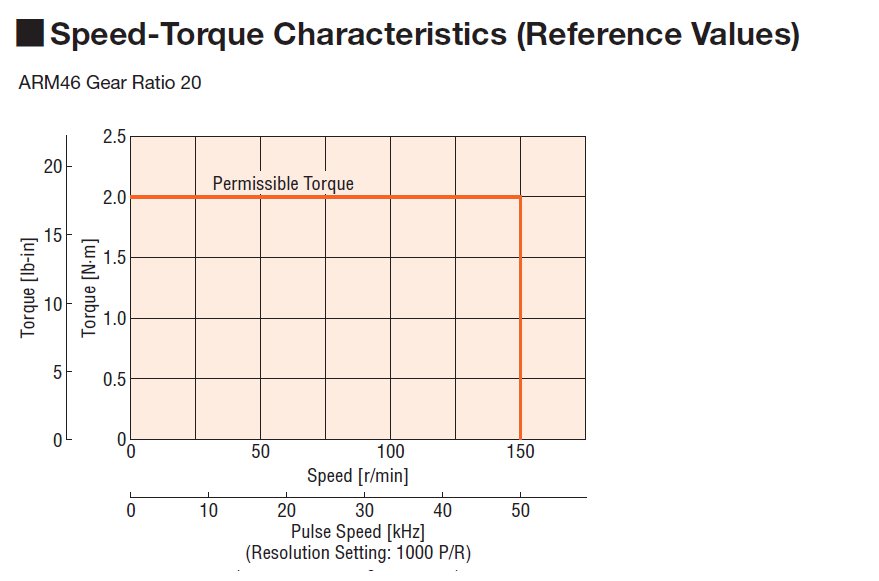

ARM46AC-FC20RA	- 1.65 in42 mm	- AC		- 280 oz-in2 N·m	- Right-Angle Spur / Face Gear	- Up	- 20 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC20RA
ARM46AC-FC20LA	- 1.65 in42 mm	- AC		- 280 oz-in2 N·m	- Right-Angle Spur / Face Gear	- Down	- 20 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC20LA

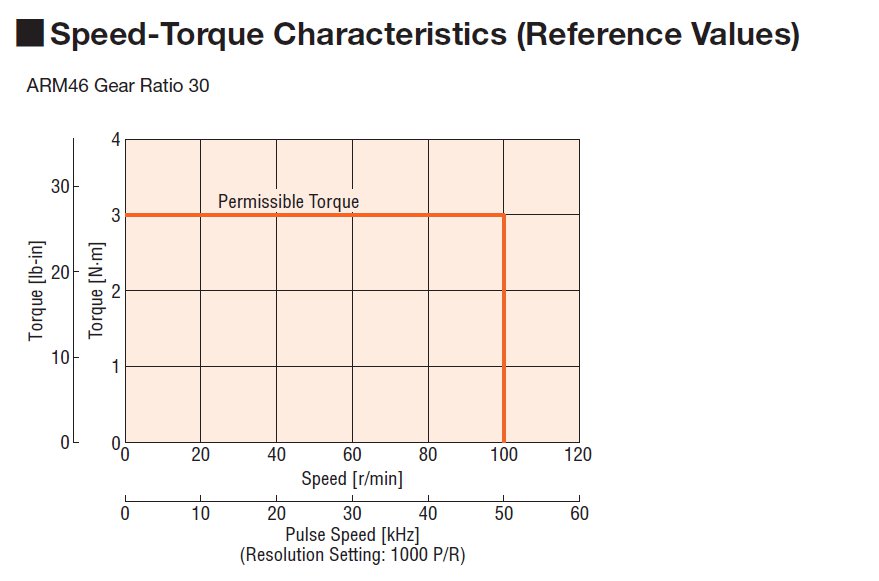

ARM46AC-FC30RA	- 1.65 in42 mm	- AC		- 420 oz-in3 N·m	- Right-Angle Spur / Face Gear	- Up	- 30 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC30RA
ARM46AC-FC30LA	- 1.65 in42 mm	- AC		- 420 oz-in3 N·m	- Right-Angle Spur / Face Gear	- Down	- 30 :1	- Single	- Not Equipped	$551.00	- ORIENTAL_2102665461:ARM46AC-FC30LA
