αSTEP

The AR Series stepper motor adopts our αSTEP technology closed loop control so the motor does not lose synchronism even when subjected to abrupt load fluctuation or acceleration. Requires αSTEP AR Series Driver.

  • 2.36 in. (60 mm) Frame Size
  • Closed Loop
  • AC Input
  • Single or Double Shaft
  • Geared Type Available
  • Electromagnetic Brake Type Available
26 - 50 of 52 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items Search by Specification
Clear Filter

Shaft/Gear Type

  • Round Shaft with Flat (No Gearhead)
  • Right-Angle Spur / Face Gear
  • Taper Hobbed Gear
  • Planetary Gear
  • Harmonic Gear

Cable Direction

  • Down
  • Up

Gear Ratio (X:1) (:1)

  • 3.6
  • 5
  • 7.2
  • 10
  • 20
  • 25
  • 30
  • 36
  • 50
  • 100

Electromagnetic Brake

  • Equipped
  • Not Equipped

Item #

Frame Size

Driver Voltage Input Power

Speed-Torque Characteristics

Holding Torque

Type

Shaft/Gear Type

Cable Direction

Gear Ratio (X:1)

Shaft

Electromagnetic Brake

Web Price

CAD

- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 480 oz-in3.5 N·m - Continuous Duty - Taper Hobbed Gear - - 20 :1 - Single - Equipped $625.00 -
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - Continuous Duty - Taper Hobbed Gear - - 30 :1 - Single - Equipped $625.00 -
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 480 oz-in3.5 N·m - Continuous Duty - Planetary Gear - - 5 :1 - Single - Equipped $989.00 - ORIENTAL_2102665461:ARM66MC-N5
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - Continuous Duty - Planetary Gear - - 7.2 :1 - Single - Equipped $989.00 - ORIENTAL_2102665461:ARM66MC-N7.2
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 704 oz-in5 N·m - Continuous Duty - Planetary Gear - - 10 :1 - Single - Equipped $989.00 - ORIENTAL_2102665461:ARM66MC-N10
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Continuous Duty - Planetary Gear - - 25 :1 - Single - Equipped $1,145.00 - ORIENTAL_2102665461:ARM66MC-N25
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Continuous Duty - Planetary Gear - - 36 :1 - Single - Equipped $1,145.00 - ORIENTAL_2102665461:ARM66MC-N36
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Continuous Duty - Planetary Gear - - 50 :1 - Single - Equipped $1,145.00 - ORIENTAL_2102665461:ARM66MC-N50
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 490 oz-in3.5 N·m - Continuous Duty - Planetary Gear - - 5 :1 - Single - Equipped $774.00 - ORIENTAL_2102665461:ARM66MC-PS5
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - Continuous Duty - Planetary Gear - - 7.2 :1 - Single - Equipped $774.00 - ORIENTAL_2102665461:ARM66MC-PS7
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 710 oz-in5 N·m - Continuous Duty - Planetary Gear - - 10 :1 - Single - Equipped $774.00 - ORIENTAL_2102665461:ARM66MC-PS10
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1130 oz-in8 N·m - Continuous Duty - Planetary Gear - - 25 :1 - Single - Equipped $848.00 - ORIENTAL_2102665461:ARM66MC-PS25
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1130 oz-in8 N·m - Continuous Duty - Planetary Gear - - 36 :1 - Single - Equipped $848.00 - ORIENTAL_2102665461:ARM66MC-PS36
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1130 oz-in8 N·m - Continuous Duty - Planetary Gear - - 50 :1 - Single - Equipped $848.00 - ORIENTAL_2102665461:ARM66MC-PS50
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 768 oz-in5.5 N·m - Continuous Duty - Harmonic Gear - - 50 :1 - Single - Equipped $1,319.00 - ORIENTAL_2102665461:ARM66MC-H50
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Continuous Duty - Harmonic Gear - - 100 :1 - Single - Equipped $1,319.00 - ORIENTAL_2102665461:ARM66MC-H100
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 280 oz-in2 N·m - Continuous Duty - Round Shaft with Flat (No Gearhead) - - - Single - Not Equipped $257.00 - ORIENTAL_2102665461:ARM69AC
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 280 oz-in2 N·m - Continuous Duty - Round Shaft with Flat (No Gearhead) - - - Double - Not Equipped $261.00 - ORIENTAL_2102665461:ARM69BC
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 280 oz-in2 N·m - Continuous Duty - Round Shaft with Flat (No Gearhead) - - - Single - Equipped $493.00 - ORIENTAL_2102665461:ARM69MC
- 2.36 in60 mm - AC

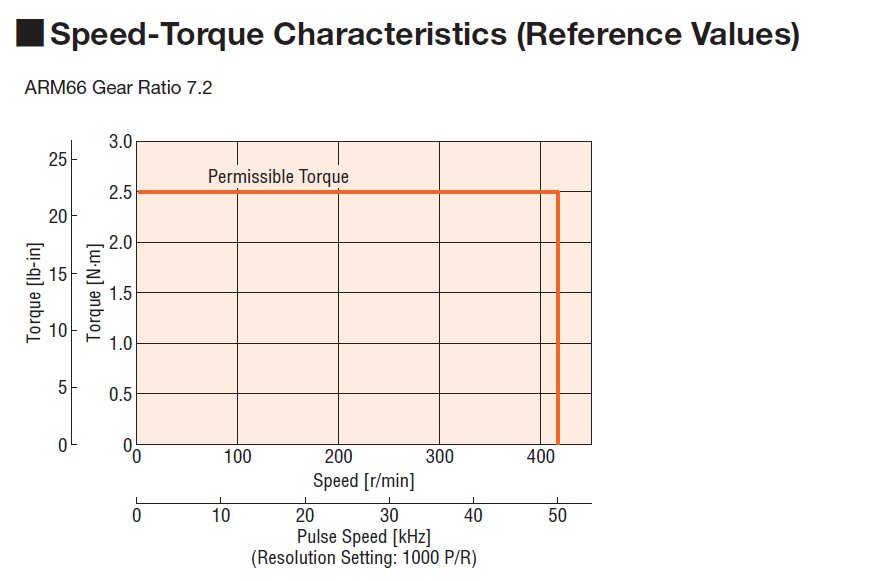

 		- 352 oz-in2.5 N·m - Continuous Duty - Right-Angle Spur / Face Gear - Up - 7.2 :1 - Single - Not Equipped $689.00 - ORIENTAL_2102665461:ARM66AC-FC7.2RA
- 2.36 in60 mm - AC

 		- 352 oz-in2.5 N·m - Continuous Duty - Right-Angle Spur / Face Gear - Down - 7.2 :1 - Single - Not Equipped $689.00 - ORIENTAL_2102665461:ARM66AC-FC7.2LA
- 2.36 in60 mm - AC

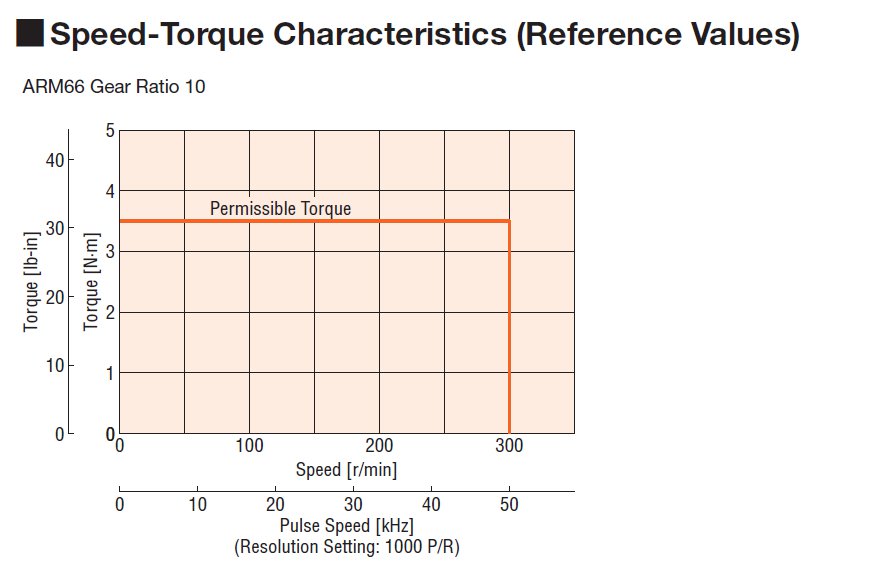

 		- 480 oz-in3.5 N·m - Continuous Duty - Right-Angle Spur / Face Gear - Up - 10 :1 - Single - Not Equipped $689.00 - ORIENTAL_2102665461:ARM66AC-FC10RA
- 2.36 in60 mm - AC

 		- 480 oz-in3.5 N·m - Continuous Duty - Right-Angle Spur / Face Gear - Down - 10 :1 - Single - Not Equipped $689.00 - ORIENTAL_2102665461:ARM66AC-FC10LA
- 2.36 in60 mm - AC

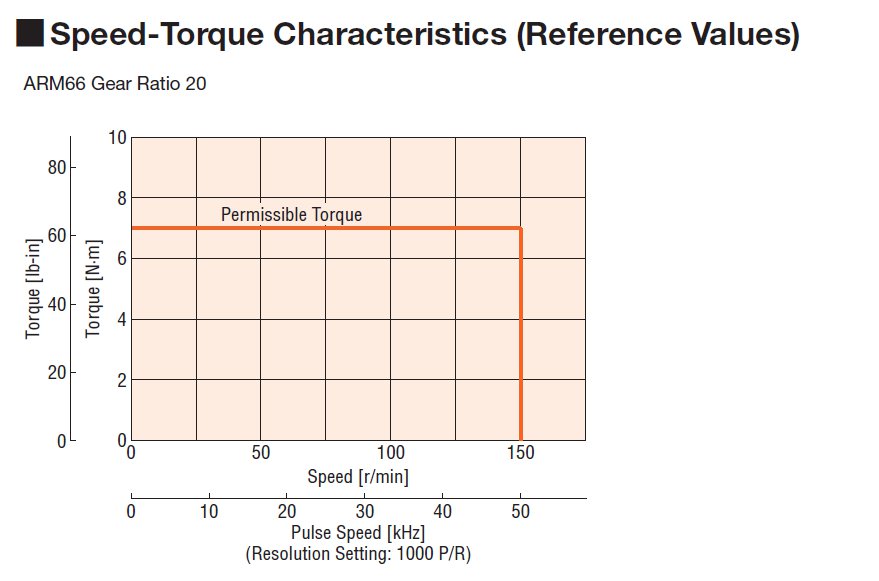

 		- 976 oz-in7 N·m - Continuous Duty - Right-Angle Spur / Face Gear - Up - 20 :1 - Single - Not Equipped $689.00 - ORIENTAL_2102665461:ARM66AC-FC20RA
- 2.36 in60 mm - AC

 		- 976 oz-in7 N·m - Continuous Duty - Right-Angle Spur / Face Gear - Down - 20 :1 - Single - Not Equipped $689.00 - ORIENTAL_2102665461:ARM66AC-FC20LA
