1.65 in. (42 mm) NEMA 17 PKP Series 2-Phase Bipolar Stepper Motors

The high-torque PKP series, bipolar 2 phase stepper motors provide high torque, low vibration and noise with a 1.8º or 0.9º basic step angle.

1.65 in. (42 mm) Frame Size
Current per Phase = 0.28 A ~ 2.3 A
Geared types
Encoder or Brake types
Max. Holding Torque

Round Shaft Type = 14.2 ~ 140 oz-in (0.1 ~ 0.99 N·m)
Geared Type = 1.77 ~ 159 lb-in (0.2 ~ 18 N·m)

226 - 250 of 276 | Results Per Page | View | Unit of Measure

« 6 7 8 9 10 »

Request Information Compare Items Search by Specification

Clear Filter

Basic Step Angle

0.1º
0.2º
0.25º
0.18º
0.05º
0.5º
0.9º
1.8º

Motor Connection Type

Connector
Flat Connector

Type

Flat
Standard
High-Torque
High-Resolution
Geared

Current per Phase (A/phase)

0.28
0.35
0.42
0.57
0.67
0.85
1.5
2.3

Shaft/Gear Type

Flat Harmonic Gear
Round Shaft with Flat (No Gearhead)
Spur Gear (Offset Shaft)
Spur Gear (Centered Shaft)
Planetary Gear

Gear Ratio (X:1) (:1)

Shaft

Single
Double

Encoder

200 P/R, 3-Channel
400 P/R, 3-Channel
1000 P/R, 3-Channel
None

Output Type

Line Driver
Voltage (TTL equivalent)

Electromagnetic Brake

Equipped
Not Equipped

Item #	Basic Step Angle	Motor Connection Type	Type	Frame Size	Motor Length	Speed-Torque Characteristics	Holding Torque	Current per Phase (A/phase)	Shaft/Gear Type	Gear Ratio (X:1)	Lost Motion	Shaft	Encoder	Output Type	Electromagnetic Brake	Web Price	CAD

PKP246D15B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 2.32 in.59 mm	Speed - Torque Characteristics	- 132 oz-in0.93 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$70.00	-
PKP243D23A	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 49 oz-in0.35 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$58.00	-
PKP243D23B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 49 oz-in0.35 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$61.00	-
PKP244D23A	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.54 in.39 mm	Speed - Torque Characteristics	- 68 oz-in0.48 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$59.00	-
PKP244D23B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.54 in.39 mm	Speed - Torque Characteristics	- 68 oz-in0.48 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$62.00	-
PKP245D23A	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.85 in.47 mm	Speed - Torque Characteristics	- 82 oz-in0.58 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$66.00	-
PKP245D23B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.85 in.47 mm	Speed - Torque Characteristics	- 82 oz-in0.58 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$68.00	-
PKP246D23A	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 2.32 in.59 mm	Speed - Torque Characteristics	- 132 oz-in0.93 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$69.00	-
PKP246D23B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 2.32 in.59 mm	Speed - Torque Characteristics	- 132 oz-in0.93 N·m	- 2.3	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$70.00	-

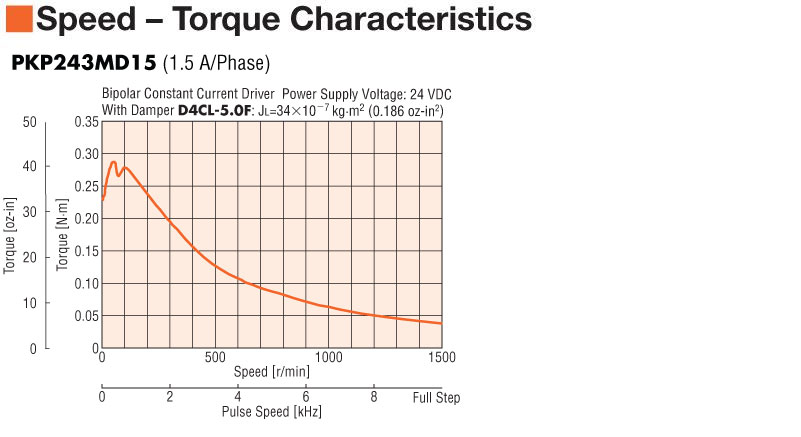

PKP243MD15A	- 0.9º	- Connector	- High-Resolution	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 42 oz-in0.3 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$58.00	-
PKP243MD15B	- 0.9º	- Connector	- High-Resolution	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 42 oz-in0.3 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$61.00	-

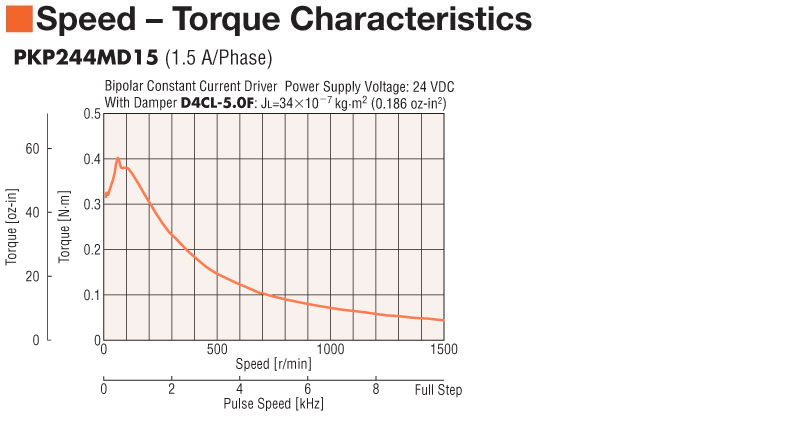

PKP244MD15A	- 0.9º	- Connector	- High-Resolution	- 1.65 in42 mm	- 1.54 in.39 mm	Speed - Torque Characteristics	- 59 oz-in0.42 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$59.00	-
PKP244MD15B	- 0.9º	- Connector	- High-Resolution	- 1.65 in42 mm	- 1.54 in.39 mm	Speed - Torque Characteristics	- 59 oz-in0.42 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$62.00	-

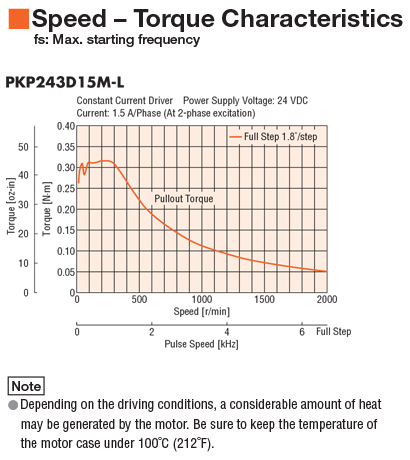

PKP243D15M	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 2.64 in.67 mm	Speed - Torque Characteristicts	- 49 oz-in0.35 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Equipped	$179.00	-

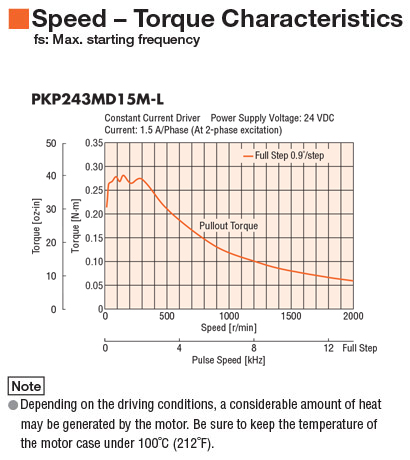

PKP243MD15M	- 0.9º	- Connector	- High-Resolution	- 1.65 in42 mm	- 2.64 in.67 mm	Speed - Torque Characteristicts	- 42 oz-in0.3 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Equipped	$179.00	-

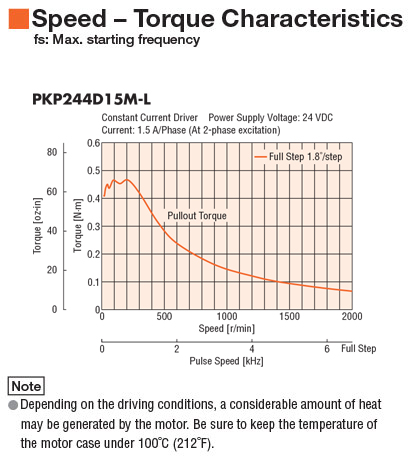

PKP244D15M	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 2.87 in.73 mm	Speed - Torque Characteristicts	- 68 oz-in0.48 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Equipped	$180.00	-

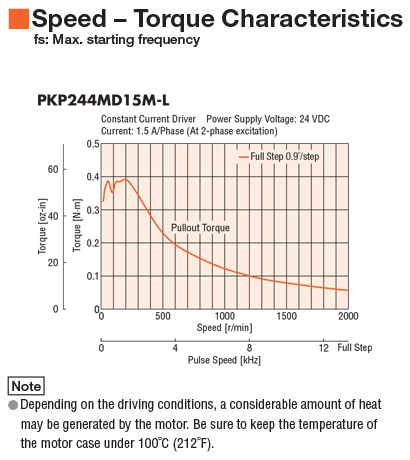

PKP244MD15M	- 0.9º	- Connector	- High-Resolution	- 1.65 in42 mm	- 2.87 in.73 mm	Speed - Torque Characteristicts	- 59 oz-in0.42 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Equipped	$180.00	-

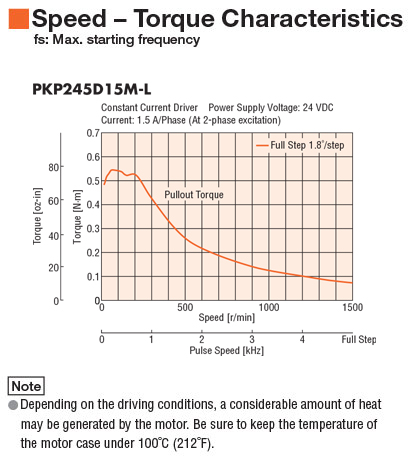

PKP245D15M	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 3.19 in.81 mm	Speed - Torque Characteristicts	- 82 oz-in0.58 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Equipped	$186.00	-

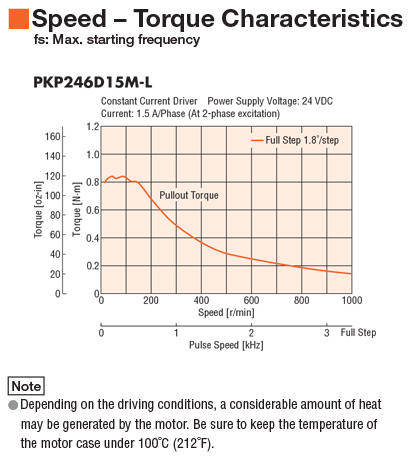

PKP246D15M	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 3.66 in.93 mm	Speed - Torque Characteristicts	- 132 oz-in0.93 N·m	- 1.5	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Equipped	$189.00	-
PKP243D02A	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 45 oz-in0.32 N·m	- 0.28	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$56.00	-
PKP243D02B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 45 oz-in0.32 N·m	- 0.28	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$57.00	-
PKP243D04A	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 45 oz-in0.32 N·m	- 0.42	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$56.00	-
PKP243D04B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 45 oz-in0.32 N·m	- 0.42	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$57.00	-

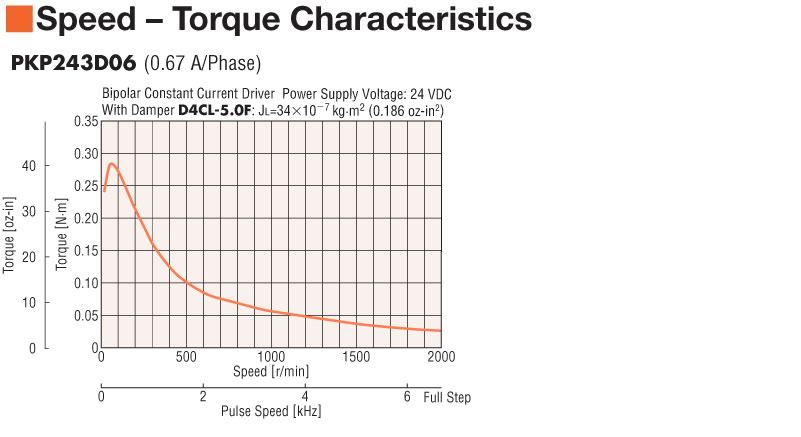

PKP243D06A	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 45 oz-in0.32 N·m	- 0.67	- Round Shaft with Flat (No Gearhead)	-	-	- Single	- Not Equipped	-	- Not Equipped	$56.00	-
PKP243D06B	- 1.8º	- Connector	- Standard	- 1.65 in42 mm	- 1.3 in.33 mm	Speed - Torque Characteristics	- 45 oz-in0.32 N·m	- 0.67	- Round Shaft with Flat (No Gearhead)	-	-	- Double	- Not Equipped	-	- Not Equipped	$57.00	-
