CRK+-top
The CRK Series with a built in controller is a compact, space saving stepper motor and driver package with a powerful, feature-rich controller built in. The driver supports stand alone or RS-485 communications with multi-drop capability for network operation and I/O control.
  • RS-485 Communications
  • Lowest vibration motor performance
  • Multi-drop up to 16 units
  • High-torque / High-resolution motor options
  • DIN Rail mount
  • GUI software available
  • Encoder options
  • Geared options
  • Resolution - 1.8º ~ 0.00288º [25 steps] (Microstep)
  • 24 VDC power supply input
  • RoHS compliant
Learn More
Unit of Measure
 1 2 3 4 5 »

Item #

Return Policy

Frame Size

Speed-Torque Characteristics

Holding Torque

Shaft/Gear Type

Gear Ratio (X:1)

Electromagnetic Brake

Shaft

Power Supply

Excitation Mode

Web Price

UPC Code

CRK543AKP-T7.2 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 98 oz-in - Taper Hobbed Gear - 7.2 :1 - Not Equipped - Single - 24 VDC - $681.00 -
CRK543BKP-T3.6 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 48 oz-in - Taper Hobbed Gear - 3.6 :1 - Not Equipped - Double - 24 VDC - $685.00 -
CRK543BKP-T7.2 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 98 oz-in - Taper Hobbed Gear - 7.2 :1 - Not Equipped - Double - 24 VDC - $685.00 -
CRK543AKP-T10 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 141 oz-in - Taper Hobbed Gear - 10 :1 - Not Equipped - Single - 24 VDC - $699.00 -
CRK543AKP-T20 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 211 oz-in - Taper Hobbed Gear - 20 :1 - Not Equipped - Single - 24 VDC - $699.00 -
CRK543AKP-T30 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 211 oz-in - Taper Hobbed Gear - 30 :1 - Not Equipped - Single - 24 VDC - $699.00 -
CRK543BKP-T10 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 141 oz-in - Taper Hobbed Gear - 10 :1 - Not Equipped - Double - 24 VDC - $702.00 -
CRK543BKP-T20 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 211 oz-in - Taper Hobbed Gear - 20 :1 - Not Equipped - Double - 24 VDC - $702.00 -
CRK543BKP-T30 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed - Torque Characteristics
 		- 211 oz-in - Taper Hobbed Gear - 30 :1 - Not Equipped - Double - 24 VDC - $702.00 -
PK543AWM / CRD507-KP - - 1.65 in
Speed - Torque Characteristics
 		- 18.4 oz-in - Round Shaft (No Gearhead) - - Equipped - Single - 24 VDC - $795.00 -
PK544AWM / CRD507-KP - - 1.65 in
Speed - Torque Characteristics
 		- 25 oz-in - Round Shaft (No Gearhead) - - Equipped - Single - 24 VDC - $797.00 -
PK545AWM / CRD507-KP - - 1.65 in
Speed - Torque Characteristics
 		- 34 oz-in - Round Shaft (No Gearhead) - - Equipped - Single - 24 VDC - $806.00 -
CRK543AKP-PS25 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 350 oz-in - Planetary Gear - 25 :1 - Not Equipped - Single - 24 VDC - $966.00 -
CRK543AKP-PS36 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 420 oz-in - Planetary Gear - 36 :1 - Not Equipped - Single - 24 VDC - $966.00 -
CRK543AKP-PS50 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 420 oz-in - Planetary Gear - 50 :1 - Not Equipped - Single - 24 VDC - $966.00 -
CRK543BKP-PS25 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 350 oz-in - Planetary Gear - 25 :1 - Not Equipped - Double - 24 VDC - $969.00 -
CRK543BKP-PS36 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 420 oz-in - Planetary Gear - 36 :1 - Not Equipped - Double - 24 VDC - $969.00 -
CRK543BKP-PS50 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 420 oz-in - Planetary Gear - 50 :1 - Not Equipped - Double - 24 VDC - $969.00 -
CRK543AKP-H50 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 480 oz-in - Harmonic Gear - 50 :1 - Not Equipped - Single - 24 VDC - $1,330.00 -
CRK543AKP-H100 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 704 oz-in - Harmonic Gear - 100 :1 - Not Equipped - Single - 24 VDC - $1,330.00 -
CRK543BKP-H50 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 480 oz-in - Harmonic Gear - 50 :1 - Not Equipped - Double - 24 VDC - $1,333.00 -
CRK543BKP-H100 - This product cannot be cancelled or returned once the order has been processed. - 1.65 in
Speed-Torque Characteristics
 		- 704 oz-in - Harmonic Gear - 100 :1 - Not Equipped - Double - 24 VDC - $1,333.00 -

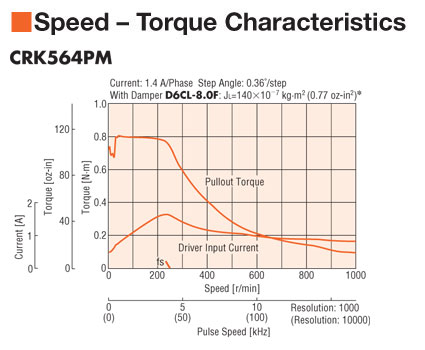

CRK564PMRKP - This product cannot be cancelled or returned once the order has been processed. - 2.36 in
Speed - Torque Characteristics
 		- 110 oz-in - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - Request Quote -

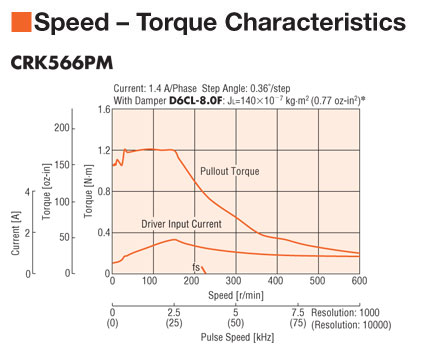

CRK566PMRKP - This product cannot be cancelled or returned once the order has been processed. - 2.36 in
Speed - Torque Characteristics
 		- 180 oz-in - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - Request Quote -
CRK569PMRKP - This product cannot be cancelled or returned once the order has been processed. - 2.36 in
Speed - Torque Characteristics
 		- 320 oz-in - Round Shaft (No Gearhead) - - Not Equipped - Single - 24 VDC - Request Quote -
