The AlphaStep AZ Series stepper motor offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Mechanical Absolute Encoder, absolute-type positioning is available, without battery back-up or external sensors to buy. Requires AlphaStep AZ Series Driver.
Item # |
Frame Size |
Driver Voltage Input Power |
Speed-Torque Characteristics |
Holding Torque |
Shaft/Gear Type |
Gear Ratio (X:1) |
Shaft |
Electromagnetic Brake |
Connection Type |
Cable Direction |
Web Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AZM66M1K | 2.36 in | DC |
 Speed - Torque Characteristics |
142 oz-in | Key Shaft (No Gearhead) | - | Single | Equipped | Cable | - | $697.00 | - ORIENTAL_2102665461:AZM66M1K |
| AZM69A1K | 2.36 in | DC |
 Speed - Torque Characteristics |
280 oz-in | Key Shaft (No Gearhead) | - | Single | Not Equipped | Cable | - | $458.00 | - ORIENTAL_2102665461:AZM69A1K |
| AZM69M1K | 2.36 in | DC |
Speed - Torque Characteristics |
280 oz-in | Key Shaft (No Gearhead) | - | Single | Equipped | Cable | - | $704.00 | - ORIENTAL_2102665461:AZM69M1K |
| AZM66AKH | 2.36 in | DC |

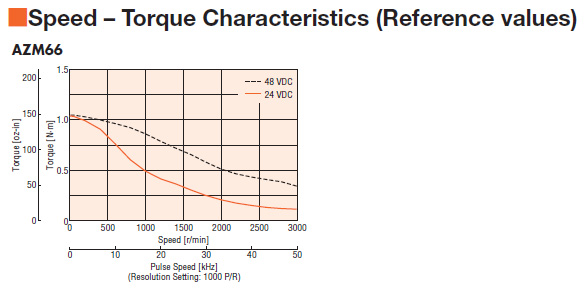

 Speed - Torque Characteristics |
142 oz-in | Round Shaft with Flat (No Gearhead) | - | Single | Not Equipped | Connector | - | $471.00 | - ORIENTAL_2102665461:AZM66AKH |
| AZM66A0KH | 2.36 in | DC |
Speed - Torque Characteristics |
142 oz-in | Round Shaft (No Gearhead) | - | Single | Not Equipped | Connector | - | $471.00 | - ORIENTAL_2102665461:AZM66A0KH |
| AZM66A1KH | 2.36 in | DC |
Speed - Torque Characteristics |
142 oz-in | Key Shaft (No Gearhead) | - | Single | Not Equipped | Connector | - | $484.00 | - ORIENTAL_2102665461:AZM66A1KH |
| AZM69AKH | 2.36 in | DC |

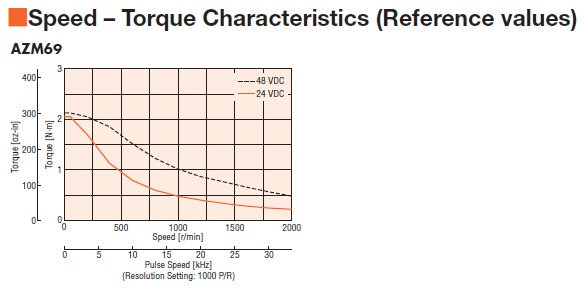

 Speed - Torque Characteristics |
280 oz-in | Round Shaft with Flat (No Gearhead) | - | Single | Not Equipped | Connector | - | $477.00 | - ORIENTAL_2102665461:AZM69AKH |
| AZM69A0KH | 2.36 in | DC |
Speed - Torque Characteristics |
280 oz-in | Round Shaft (No Gearhead) | - | Single | Not Equipped | Connector | - | $477.00 | - ORIENTAL_2102665461:AZM69A0KH |
| AZM69A1KH | 2.36 in | DC |
Speed - Torque Characteristics |
280 oz-in | Key Shaft (No Gearhead) | - | Single | Not Equipped | Connector | - | $491.00 | - ORIENTAL_2102665461:AZM69A1KH |
| AZM66MKH | 2.36 in | DC |
Speed - Torque Characteristics |
142 oz-in | Round Shaft with Flat (No Gearhead) | - | Single | Equipped | Connector | - | $722.00 | - ORIENTAL_2102665461:AZM66MKH |
| AZM66M0KH | 2.36 in | DC |
Speed - Torque Characteristics |
142 oz-in | Round Shaft (No Gearhead) | - | Single | Equipped | Connector | - | $722.00 | - ORIENTAL_2102665461:AZM66M0KH |
| AZM66M1KH | 2.36 in | DC |
Speed - Torque Characteristics |
142 oz-in | Key Shaft (No Gearhead) | - | Single | Equipped | Connector | - | $735.00 | - ORIENTAL_2102665461:AZM66M1KH |
| AZM69MKH | 2.36 in | DC |
Speed - Torque Characteristics |
280 oz-in | Round Shaft with Flat (No Gearhead) | - | Single | Equipped | Connector | - | $727.00 | - ORIENTAL_2102665461:AZM69MKH |
| AZM69M0KH | 2.36 in | DC |
Speed - Torque Characteristics |
280 oz-in | Round Shaft (No Gearhead) | - | Single | Equipped | Connector | - | $727.00 | - ORIENTAL_2102665461:AZM69M0KH |
| AZM69M1KH | 2.36 in | DC |
Speed - Torque Characteristics |
280 oz-in | Key Shaft (No Gearhead) | - | Single | Equipped | Connector | - | $741.00 | - ORIENTAL_2102665461:AZM69M1KH |
| AZM66AKH-FC10DA | 2.36 in | DC |

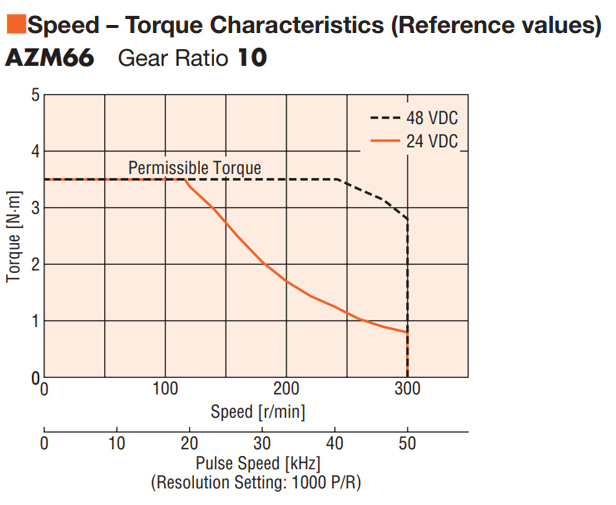

 Speed - Torque Characteristics |
480 oz-in | Right-Angle Spur / Face Gear | 10 :1 | Single | Not Equipped | Connector | Down | $884.00 | - |
| AZM66AKH-FC10UA | 2.36 in | DC |
Speed - Torque Characteristics |
480 oz-in | Right-Angle Spur / Face Gear | 10 :1 | Single | Not Equipped | Connector | Up | $884.00 | - |
| AZM66AKH-FC20DA | 2.36 in | DC |

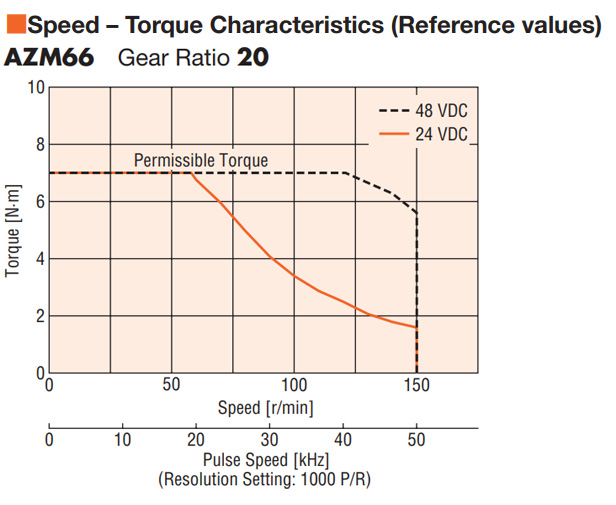

 Speed - Torque Characteristics |
976 oz-in | Right-Angle Spur / Face Gear | 20 :1 | Single | Not Equipped | Connector | Down | $884.00 | - |
| AZM66AKH-FC20UA | 2.36 in | DC |
Speed - Torque Characteristics |
976 oz-in | Right-Angle Spur / Face Gear | 20 :1 | Single | Not Equipped | Connector | Up | $884.00 | - |
| AZM66AKH-FC30DA | 2.36 in | DC |

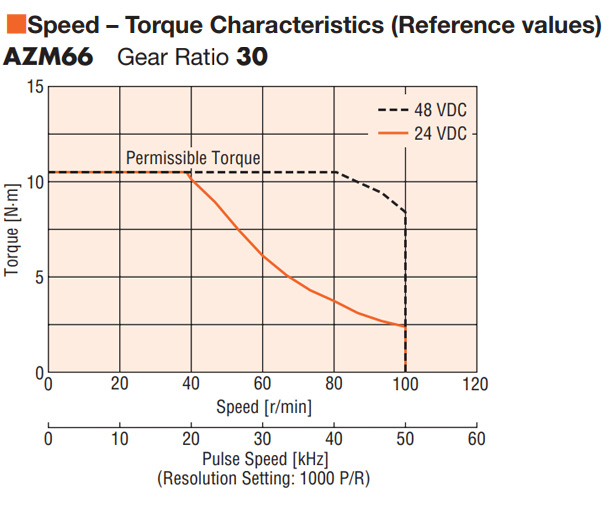

 Speed - Torque Characteristics |
1472 oz-in | Right-Angle Spur / Face Gear | 30 :1 | Single | Not Equipped | Connector | Down | $884.00 | - |
| AZM66AKH-FC30UA | 2.36 in | DC |
Speed - Torque Characteristics |
1472 oz-in | Right-Angle Spur / Face Gear | 30 :1 | Single | Not Equipped | Connector | Up | $884.00 | - |
| AZM66AKH-FC7.2DA | 2.36 in | DC |

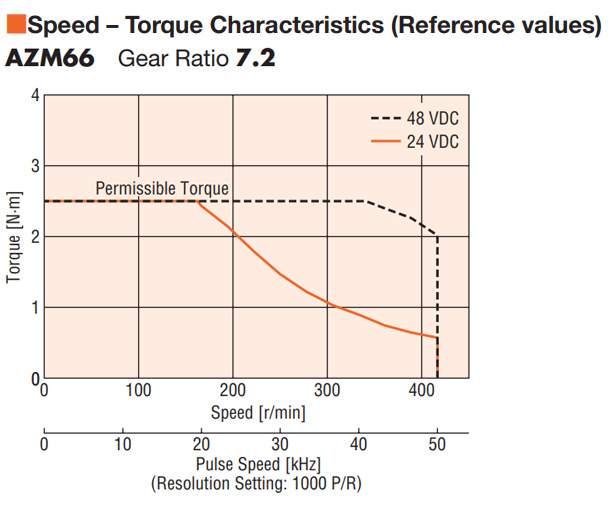

 Speed - Torque Characteristics |
352 oz-in | Right-Angle Spur / Face Gear | 7.2 :1 | Single | Not Equipped | Connector | Down | $884.00 | - |
| AZM66AKH-FC7.2UA | 2.36 in | DC |
Speed - Torque Characteristics |
352 oz-in | Right-Angle Spur / Face Gear | 7.2 :1 | Single | Not Equipped | Connector | Up | $884.00 | - |
| AZM66AKH-HS100 | 2.36 in | DC |

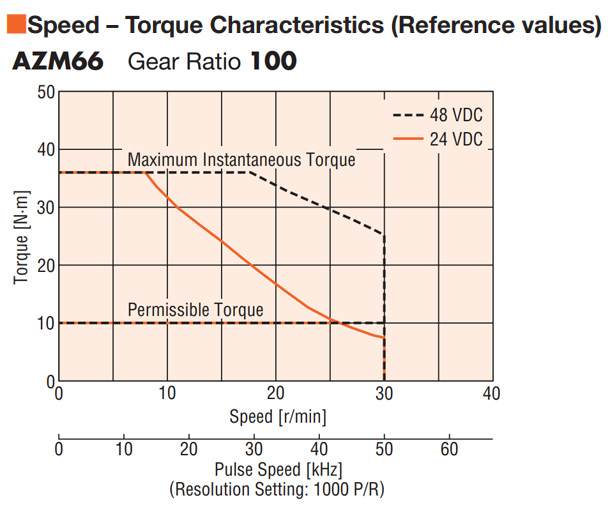

 Speed - Torque Characteristics |
1416 oz-in | Harmonic Gear | 100 :1 | Single | Not Equipped | Connector | - | $1,527.00 | - |
| AZM66AKH-HS50 | 2.36 in | DC |
 Speed - Torque Characteristics |
991 oz-in | Harmonic Gear | 50 :1 | Single | Not Equipped | Connector | - | $1,527.00 | - |
