The αSTEP AZ Series stepper motor offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Mechanical Absolute Encoder, absolute-type positioning is available, without battery back-up or external sensors to buy. Requires αSTEP AZ Series Driver.
Item # |
Frame Size |
Driver Voltage Input Power |
Speed-Torque Characteristics |
Holding Torque |
Shaft/Gear Type |
Gear Ratio (X:1) |
Shaft |
Electromagnetic Brake |
Connection Type |
Cable Direction |
Web Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AZM46AK-FC10DA | 1.65 in | DC |
 |

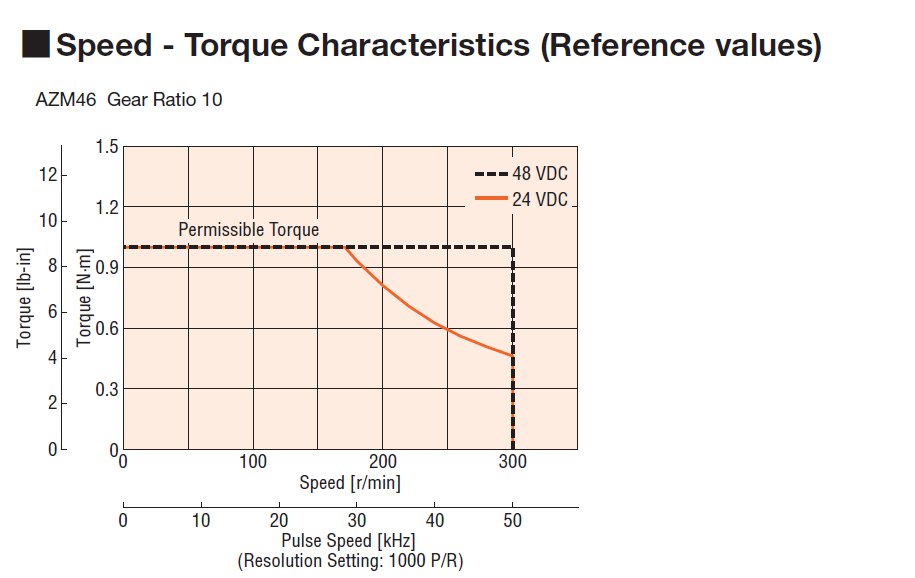

142 oz-in | Right-Angle Spur / Face Gear | 10 :1 | Single | Not Equipped | Cable | Down | $718.00 | - ORIENTAL_2102665461:AZM46AK-FC10DA |
| AZM46AK-FC20DA | 1.65 in | DC |
 |

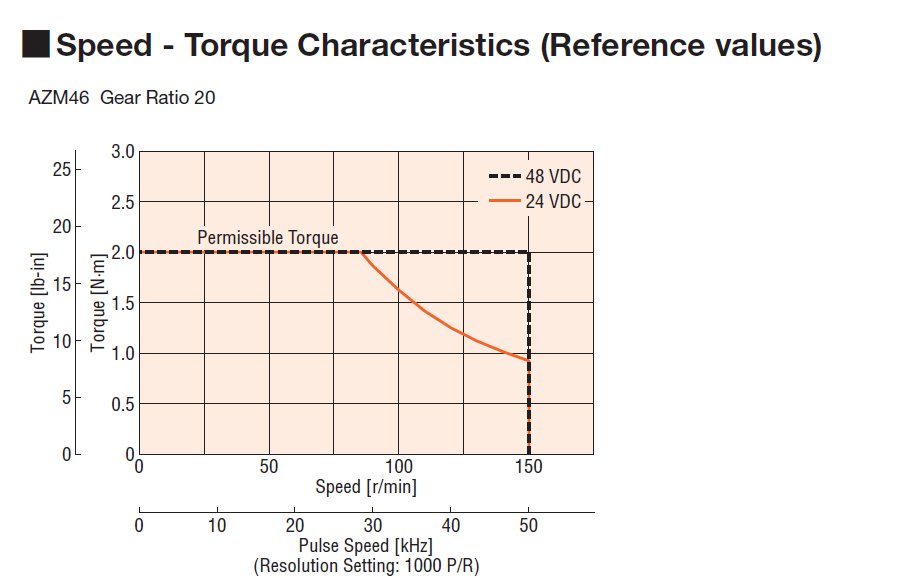

280 oz-in | Right-Angle Spur / Face Gear | 20 :1 | Single | Not Equipped | Cable | Down | $718.00 | - ORIENTAL_2102665461:AZM46AK-FC20DA |
| AZM46AK-FC30DA | 1.65 in | DC |
 |

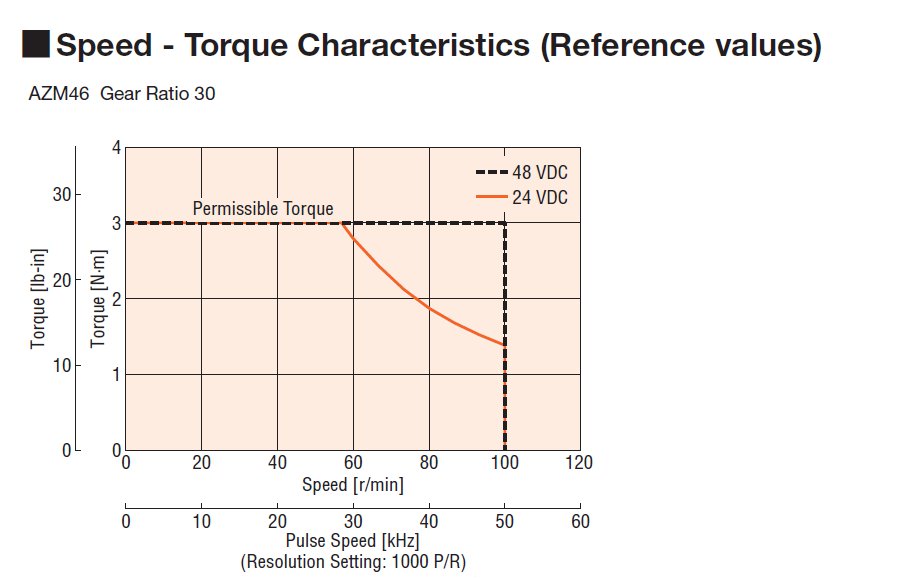

420 oz-in | Right-Angle Spur / Face Gear | 30 :1 | Single | Not Equipped | Cable | Down | $718.00 | - ORIENTAL_2102665461:AZM46AK-FC30DA |
| AZM46AK-FC7.2UA | 1.65 in | DC |
 |

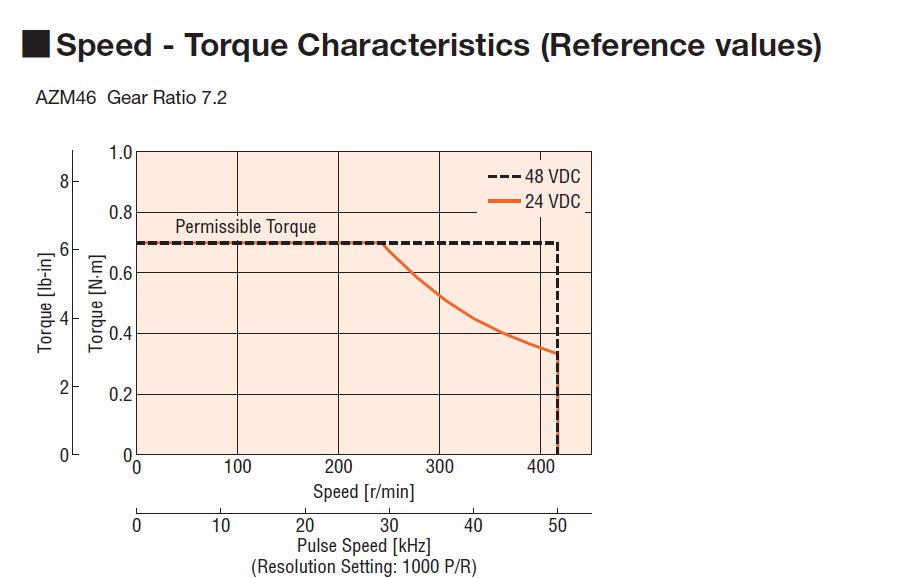

99 oz-in | Right-Angle Spur / Face Gear | 7.2 :1 | Single | Not Equipped | Cable | Up | $718.00 | - ORIENTAL_2102665461:AZM46AK-FC7.2UA |
| AZM46AK-FC10UA | 1.65 in | DC |
|
142 oz-in | Right-Angle Spur / Face Gear | 10 :1 | Single | Not Equipped | Cable | Up | $718.00 | - ORIENTAL_2102665461:AZM46AK-FC10UA |
| AZM46AK-FC20UA | 1.65 in | DC |
|
280 oz-in | Right-Angle Spur / Face Gear | 20 :1 | Single | Not Equipped | Cable | Up | $718.00 | - ORIENTAL_2102665461:AZM46AK-FC20UA |
| AZM46AK-FC30UA | 1.65 in | DC |
|
420 oz-in | Right-Angle Spur / Face Gear | 30 :1 | Single | Not Equipped | Cable | Up | $718.00 | - ORIENTAL_2102665461:AZM46AK-FC30UA |
| AZM46MK-FC7.2DA | 1.65 in | DC |
|
99 oz-in | Right-Angle Spur / Face Gear | 7.2 :1 | Single | Equipped | Cable | Down | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC7.2DA |
| AZM46MK-FC10DA | 1.65 in | DC |
|
142 oz-in | Right-Angle Spur / Face Gear | 10 :1 | Single | Equipped | Cable | Down | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC10DA |
| AZM46MK-FC20DA | 1.65 in | DC |
|
280 oz-in | Right-Angle Spur / Face Gear | 20 :1 | Single | Equipped | Cable | Down | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC20DA |
| AZM46MK-FC30DA | 1.65 in | DC |
|
420 oz-in | Right-Angle Spur / Face Gear | 30 :1 | Single | Equipped | Cable | Down | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC30DA |
| AZM46MK-FC7.2UA | 1.65 in | DC |
|
99 oz-in | Right-Angle Spur / Face Gear | 7.2 :1 | Single | Equipped | Cable | Up | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC7.2UA |
| AZM46MK-FC10UA | 1.65 in | DC |
|
142 oz-in | Right-Angle Spur / Face Gear | 10 :1 | Single | Equipped | Cable | Up | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC10UA |
| AZM46MK-FC20UA | 1.65 in | DC |
|
280 oz-in | Right-Angle Spur / Face Gear | 20 :1 | Single | Equipped | Cable | Up | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC20UA |
| AZM46MK-FC30UA | 1.65 in | DC |
|
420 oz-in | Right-Angle Spur / Face Gear | 30 :1 | Single | Equipped | Cable | Up | $913.00 | - ORIENTAL_2102665461:AZM46MK-FC30UA |
| AZM46A0K | 1.65 in | DC |

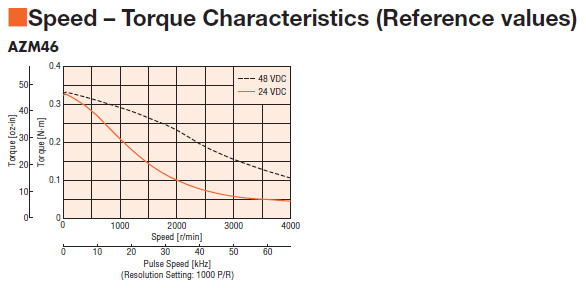

 Speed - Torque Characteristics |
42 oz-in | Round Shaft (No Gearhead) | - | Single | Not Equipped | Cable | - | $372.00 | - ORIENTAL_2102665461:AZM46A0K |
| AZM46M0K | 1.65 in | DC |
Speed - Torque Characteristics |
42 oz-in | Round Shaft (No Gearhead) | - | Single | Equipped | Cable | - | $563.00 | - ORIENTAL_2102665461:AZM46M0K |
| AZM48A0K | 1.65 in | DC |

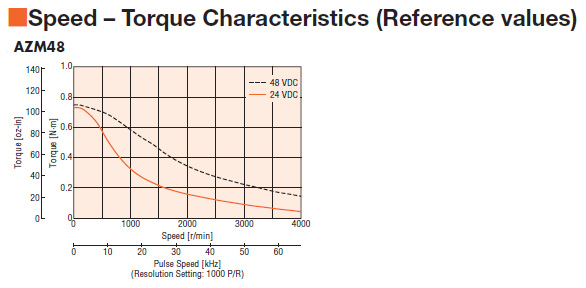

 Speed - Torque Characteristics |
102 oz-in | Round Shaft (No Gearhead) | - | Single | Not Equipped | Cable | - | $385.00 | - ORIENTAL_2102665461:AZM48A0K |
| AZM48A1K | 1.65 in | DC |
Speed - Torque Characteristics |
102 oz-in | Key Shaft (No Gearhead) | - | Single | Not Equipped | Cable | - | $399.00 | - ORIENTAL_2102665461:AZM48A1K |
| AZM46AKH | 1.65 in | DC |
 Speed - Torque Characteristics |
42 oz-in | Round Shaft with Flat (No Gearhead) | - | Single | Not Equipped | Connector | - | $404.00 | - ORIENTAL_2102665461:AZM46AKH |
| AZM46A0KH | 1.65 in | DC |
Speed - Torque Characteristics |
42 oz-in | Round Shaft (No Gearhead) | - | Single | Not Equipped | Connector | - | $404.00 | - ORIENTAL_2102665461:AZM46A0KH |
| AZM48AKH | 1.65 in | DC |
 Speed - Torque Characteristics |
102 oz-in | Round Shaft with Flat (No Gearhead) | - | Single | Not Equipped | Connector | - | $418.00 | - ORIENTAL_2102665461:AZM48AKH |
| AZM48A0KH | 1.65 in | DC |
Speed - Torque Characteristics |
102 oz-in | Round Shaft (No Gearhead) | - | Single | Not Equipped | Connector | - | $418.00 | - ORIENTAL_2102665461:AZM48A0KH |
| AZM48A1KH | 1.65 in | DC |
Speed - Torque Characteristics |
102 oz-in | Key Shaft (No Gearhead) | - | Single | Not Equipped | Connector | - | $431.00 | - ORIENTAL_2102665461:AZM48A1KH |
| AZM46MKH | 1.65 in | DC |
Speed - Torque Characteristics |
42 oz-in | Round Shaft with Flat (No Gearhead) | - | Single | Equipped | Connector | - | $598.00 | - ORIENTAL_2102665461:AZM46MKH |
