Item # |
Basic Step Angle |
Frame Size |
Motor Length |
Motor Connection Type |
Holding Torque |
Speed-Torque Characteristics |
Type |
Current per Phase (A/phase) |
Shaft/Gear Type |
Gear Ratio (X:1) |
Output Shaft Diameter |
Shaft |
Encoder |
Encoder Output |
Output Type |
Electromagnetic Brake |
Web Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PKP245U12A2-R2FL | 1.8º | 1.65 in | 2.38 in. | Flat Connector | 69 oz-in |
 |
High-Torque | 1.2 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Single | Equipped | 400 P/R, 3-Channel | Line Driver | Not Equipped | $135.00 | - ORIENTAL_2102665461:PKP245U12A2-R2FL |

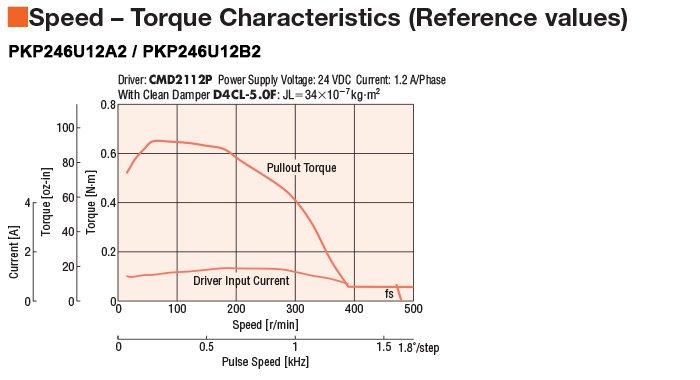

| PKP246U12A2 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 106 oz-in |
 |
High-Torque | 1.2 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Single | Not Equipped | - | - | Not Equipped | $74.00 | - ORIENTAL_2102665461:PKP246U12A2 |
| PKP246U12B2 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 106 oz-in |
|
High-Torque | 1.2 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Double | Not Equipped | - | - | Not Equipped | $75.00 | - ORIENTAL_2102665461:PKP246U12B2 |
| PKP246U12A2-R2E | 1.8º | 1.65 in | 2.85 in. | Flat Connector | 106 oz-in |
|
High-Torque | 1.2 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Single | Equipped | 200 P/R, 3-Channel | Voltage (TTL equivalent) | Not Equipped | $140.00 | - ORIENTAL_2102665461:PKP246U12A2-R2E |
| PKP246U12A2-R2EL | 1.8º | 1.65 in | 2.85 in. | Flat Connector | 106 oz-in |
|
High-Torque | 1.2 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Single | Equipped | 200 P/R, 3-Channel | Line Driver | Not Equipped | $140.00 | - ORIENTAL_2102665461:PKP246U12A2-R2EL |
| PKP246U12A2-R2F | 1.8º | 1.65 in | 2.85 in. | Flat Connector | 106 oz-in |
|
High-Torque | 1.2 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Single | Equipped | 400 P/R, 3-Channel | Voltage (TTL equivalent) | Not Equipped | $140.00 | - ORIENTAL_2102665461:PKP246U12A2-R2F |
| PKP246U12A2-R2FL | 1.8º | 1.65 in | 2.85 in. | Flat Connector | 106 oz-in |
|
High-Torque | 1.2 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Single | Equipped | 400 P/R, 3-Channel | Line Driver | Not Equipped | $140.00 | - ORIENTAL_2102665461:PKP246U12A2-R2FL |
| PKP246U16A2 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 106 oz-in |
 |
High-Torque | 1.6 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Single | Not Equipped | - | - | Not Equipped | $74.00 | - ORIENTAL_2102665461:PKP246U16A2 |
| PKP246U16B2 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 106 oz-in |
|
High-Torque | 1.6 | Round Shaft with Flat (No Gearhead) | - | 5 mm | Double | Not Equipped | - | - | Not Equipped | $75.00 | - ORIENTAL_2102665461:PKP246U16B2 |

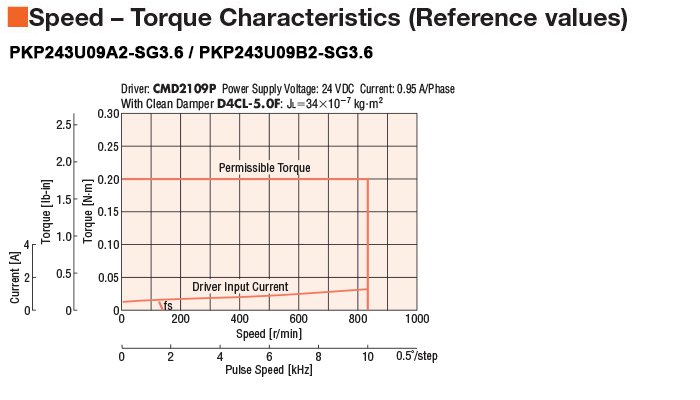

| PKP243U09A2-SG3.6 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 28.32 oz-in |
 |
Geared | 0.95 | Spur Gear (Offset Shaft) | 3.6 :1 | 5 mm | Single | Not Equipped | - | - | Not Equipped | $145.00 | - ORIENTAL_2102665461:PKP243U09A2-SG3.6 |
| PKP243U09B2-SG3.6 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 28.32 oz-in |
|
Geared | 0.95 | Spur Gear (Offset Shaft) | 3.6 :1 | 5 mm | Double | Not Equipped | - | - | Not Equipped | $149.00 | - ORIENTAL_2102665461:PKP243U09B2-SG3.6 |

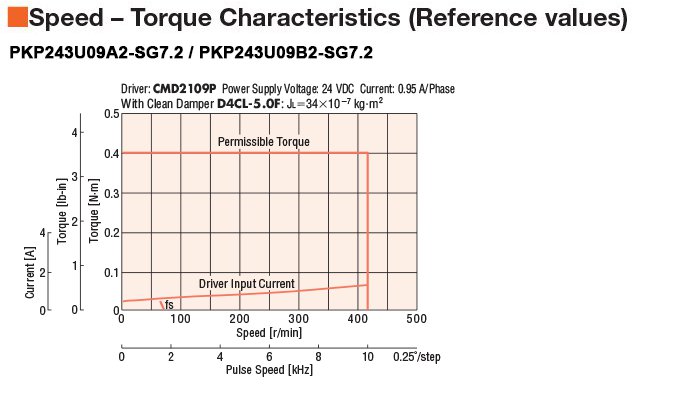

| PKP243U09A2-SG7.2 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 56.64 oz-in |
 |
Geared | 0.95 | Spur Gear (Offset Shaft) | 7.2 :1 | 5 mm | Single | Not Equipped | - | - | Not Equipped | $145.00 | - ORIENTAL_2102665461:PKP243U09A2-SG7.2 |
| PKP243U09B2-SG7.2 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 56.64 oz-in |
|
Geared | 0.95 | Spur Gear (Offset Shaft) | 7.2 :1 | 5 mm | Double | Not Equipped | - | - | Not Equipped | $149.00 | - ORIENTAL_2102665461:PKP243U09B2-SG7.2 |

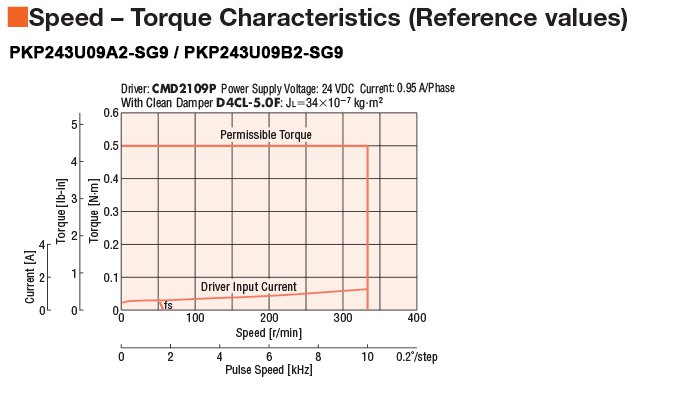

| PKP243U09A2-SG9 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 70.81 oz-in |
 |
Geared | 0.95 | Spur Gear (Offset Shaft) | 9 :1 | 5 mm | Single | Not Equipped | - | - | Not Equipped | $145.00 | - ORIENTAL_2102665461:PKP243U09A2-SG9 |
| PKP243U09B2-SG9 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 70.81 oz-in |
|
Geared | 0.95 | Spur Gear (Offset Shaft) | 9 :1 | 5 mm | Double | Not Equipped | - | - | Not Equipped | $149.00 | - ORIENTAL_2102665461:PKP243U09B2-SG9 |

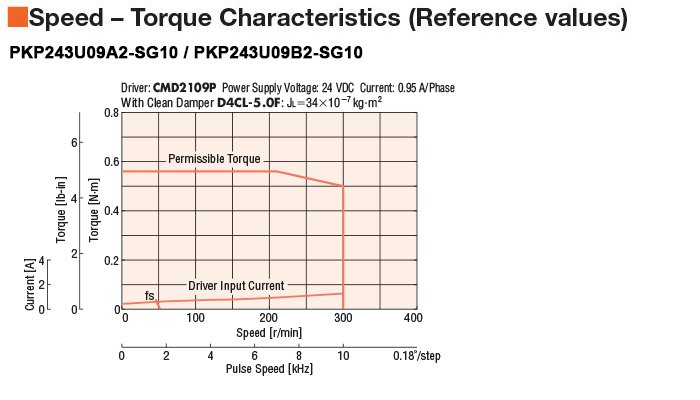

| PKP243U09A2-SG10 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 79.3 oz-in |
 |
Geared | 0.95 | Spur Gear (Offset Shaft) | 10 :1 | 5 mm | Single | Not Equipped | - | - | Not Equipped | $145.00 | - ORIENTAL_2102665461:PKP243U09A2-SG10 |
| PKP243U09B2-SG10 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 79.3 oz-in |
|
Geared | 0.95 | Spur Gear (Offset Shaft) | 10 :1 | 5 mm | Double | Not Equipped | - | - | Not Equipped | $149.00 | - ORIENTAL_2102665461:PKP243U09B2-SG10 |

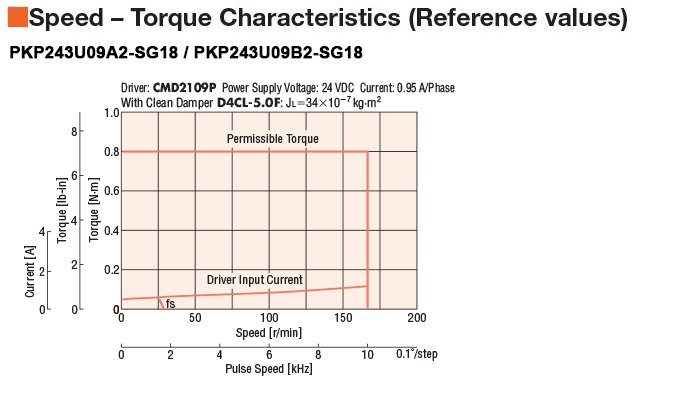

| PKP243U09A2-SG18 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 113.29 oz-in |
 |
Geared | 0.95 | Spur Gear (Offset Shaft) | 18 :1 | 5 mm | Single | Not Equipped | - | - | Not Equipped | $167.00 | - ORIENTAL_2102665461:PKP243U09A2-SG18 |
| PKP243U09B2-SG18 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 113.29 oz-in |
|
Geared | 0.95 | Spur Gear (Offset Shaft) | 18 :1 | 5 mm | Double | Not Equipped | - | - | Not Equipped | $169.00 | - ORIENTAL_2102665461:PKP243U09B2-SG18 |
| PKP243U09A2-SG36 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 113.29 oz-in |
 |
Geared | 0.95 | Spur Gear (Offset Shaft) | 36 :1 | 5 mm | Single | Not Equipped | - | - | Not Equipped | $167.00 | - ORIENTAL_2102665461:PKP243U09A2-SG36 |
| PKP243U09B2-SG36 | 1.8º | 1.65 in | 2.32 in. | Flat Connector | 113.29 oz-in |
|
Geared | 0.95 | Spur Gear (Offset Shaft) | 36 :1 | 5 mm | Double | Not Equipped | - | - | Not Equipped | $169.00 | - ORIENTAL_2102665461:PKP243U09B2-SG36 |
| PKP264U10A2 | 1.8º | 2.22 in | 1.54 in. | Flat Connector | 82 oz-in |
 |
High-Torque | 1 | Round Shaft with Flat (No Gearhead) | - | 8 mm | Single | Not Equipped | - | - | Not Equipped | $73.00 | - ORIENTAL_2102665461:PKP264U10A2 |
| PKP264U10AA2 | 1.8º | 2.22 in | 1.54 in. | Flat Connector | 82 oz-in |
|
High-Torque | 1 | Round Shaft with Flat (No Gearhead) | - | 1/4 in. | Single | Not Equipped | - | - | Not Equipped | $74.00 | - ORIENTAL_2102665461:PKP264U10AA2 |
| PKP264U10B2 | 1.8º | 2.22 in | 1.54 in. | Flat Connector | 82 oz-in |
|
High-Torque | 1 | Round Shaft with Flat (No Gearhead) | - | 8 mm | Double | Not Equipped | - | - | Not Equipped | $75.00 | - ORIENTAL_2102665461:PKP264U10B2 |
| PKP264U10BA2 | 1.8º | 2.22 in | 1.54 in. | Flat Connector | 82 oz-in |
|
High-Torque | 1 | Round Shaft with Flat (No Gearhead) | - | 1/4 in. | Double | Not Equipped | - | - | Not Equipped | $75.00 | - ORIENTAL_2102665461:PKP264U10BA2 |
