Basic Step Angle |
- 0.0072º |
Frame Size |
- 3.54 in90 mm |
Motor Length |
- 2.68 in.68 mm |
Speed-Torque Characteristics |
-
 |
Holding Torque |
- 7360 oz-in52 N·m |
Type |
- Geared |
Shaft/Gear Type |
- Harmonic Gear |
Gear Ratio (X:1) |
- 100 :1 |
Shaft |
- Double |
Electromagnetic Brake |
- Not Equipped |
Power Supply |
- Single-Phase 200-240 VAC |
Current |
- 3.0 A |
Permissible Speed Range (r/min) |
- 0 ~ 35 |
Rotor Inertia |
- 7.1 oz-in²1300x10-7 kg·m² |
Lost Motion |
- 0.7 arc min maximum |
Radial Load |
- 0 in. from Shaft End = 240 lb0.2 in. from Shaft End = 250 lb0.39 in. from Shaft End = 270 lb0.59 in. from Shaft End = 290 lb0.79 in. from Shaft End = 310 lb0 mm from Shaft End = 1090 N5 mm from Shaft End = 1150 N10 mm from Shaft End = 1230 N15 mm from Shaft End = 1310 N20 mm from Shaft End = 1410 N |
Axial Load |
- 290 lb1300 N |
RoHS Compliant |
- Yes |
Safety Standards |
- UL CE |
CE Marking |
- Low Voltage Directives EMC Directives |
Components |

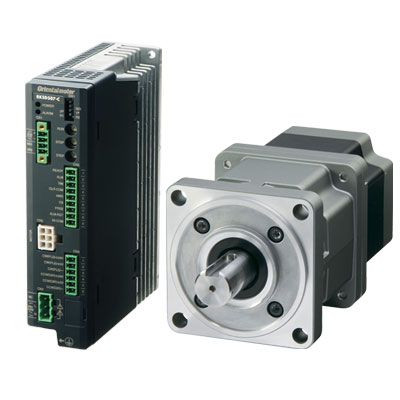

- RKSD507-C [Driver] PKE596BC-HS100 [Motor] |
Degree of Protection |
- IP20 |
|
|
|
|
|
|
|
|
