Basic Step Angle |
- 0.024º |
Frame Size |
- 3.54 in90 mm |
Motor Length |
- 2.68 in.68 mm |
Speed-Torque Characteristics |
-
 |
Holding Torque |
- 3520 oz-in25 N·m |
Type |
- Geared |
Shaft/Gear Type |
- Spur Gear (Offset Shaft) |
Gear Ratio (X:1) |
- 30 :1 |
Backlash |
- 10 arc min (0.17º) |
Shaft |
- Double |
Electromagnetic Brake |
- Not Equipped |
Power Supply |
- Single-Phase 100-120 VAC |
Current |
- 4.9 A |
Permissible Speed Range (r/min) |
- 0 ~ 150 |
Rotor Inertia |
- 6 oz-in²1100x10-7 kg·m² |
Radial Load |
- 0 in. from Shaft End = 67 lb0.2 in. from Shaft End = 73 lb0.39 in. from Shaft End = 78 lb0.59 in. from Shaft End = 84 lb0.79 in. from Shaft End = 90 lb0 mm from Shaft End = 300 N5 mm from Shaft End = 325 N10 mm from Shaft End = 350 N15 mm from Shaft End = 375 N20 mm from Shaft End = 400 N |
Axial Load |
- 33 lb150 N |
RoHS Compliant |
- Yes |
Safety Standards |
- UL CE |
CE Marking |
- Low Voltage Directives EMC Directives |
Components |

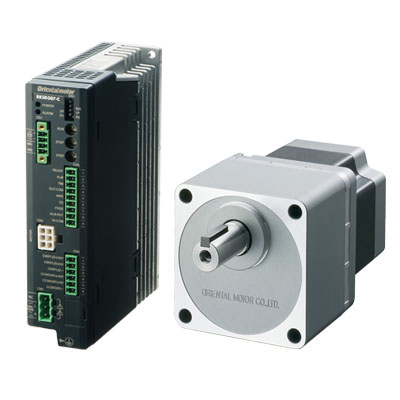

- RKSD507-A [Driver] PKE596BC-TS30 [Motor] |
Degree of Protection |
- IP20 |
|
|
|
|
|
|
|
|
