| Lead Time1 | Up to 20 pcs as of 6:30am EST Estimated Ship: 07/08/2024 |

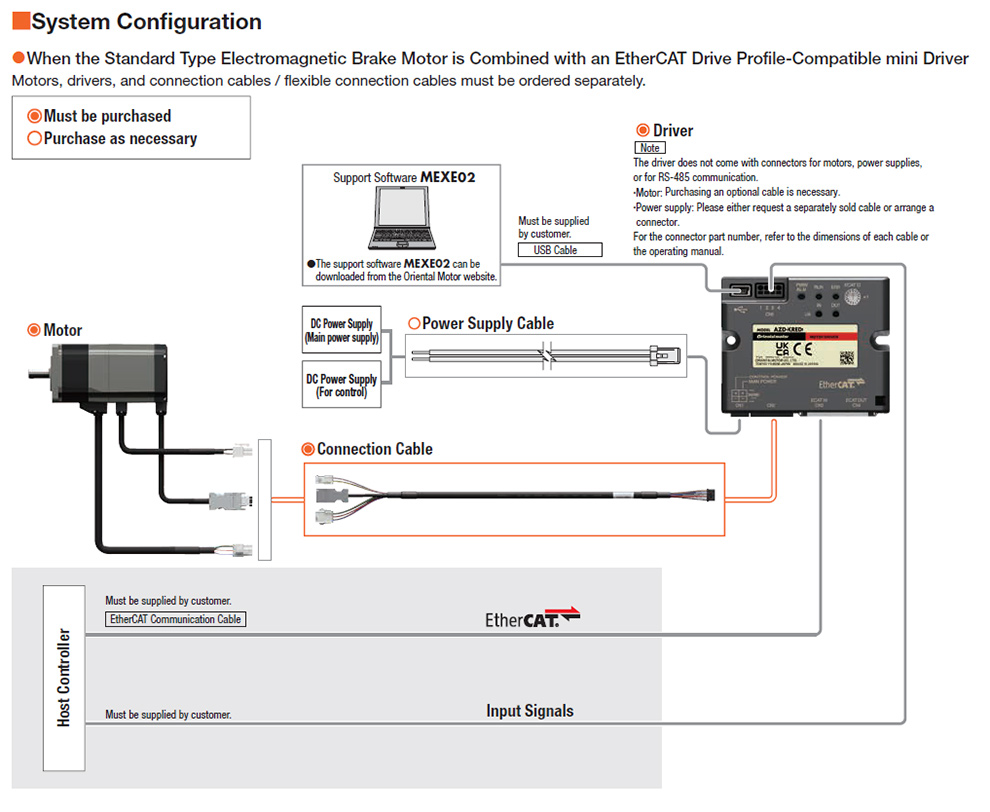

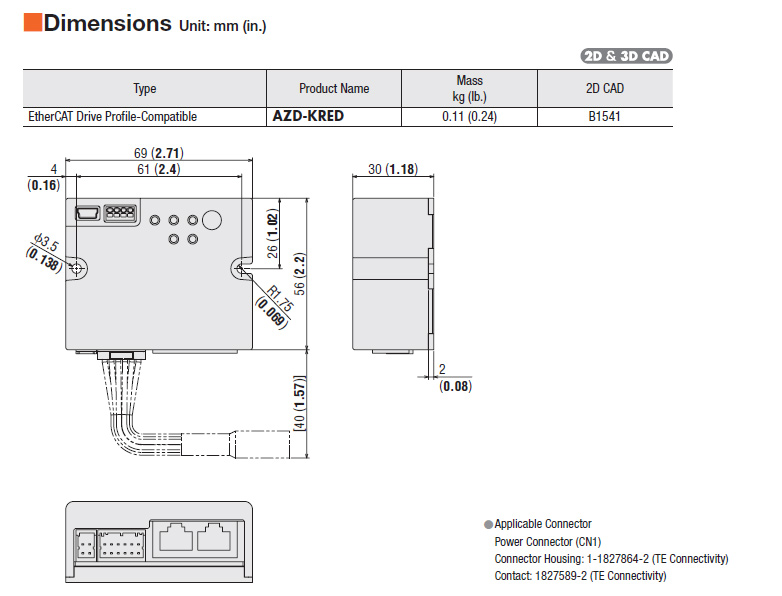

Driver Type |
- EtherCAT Communications Type |
Power Supply |
- 24 / 48 VDC |
Main Power Supply Input Current |
- 0.4 ~ 3.7A (Refer to manual for details) |
Safety Standards |
- UL CE |
Accessories - Mounting Brackets |
-
MAFP06W-4, 42 mm Mounting Bracket for AZ mini Driver ($60.00) MAFP06W-6, 60 mm Mounting Bracket for AZ mini Driver ($60.00) |
Communication Standards |
- IEC 61158 Type12 |
Physical Layer |
- 100 BASE-TX (IEEE 802.3) |
Transmission Rate |
- 100 Mbps |
Communication Cycle |
-
Free Run Mode: 1 ms or more SM2 Event Synchronization Mode: 1 ms or more DC Mode: 0.25 ms, 0.5 ms, 1 ms, 2 ms, 3 ms, 4 ms, 5 ms, 6 ms, 7 ms, 8 ms |
Communication Port |
-
RJ45x2 (Shielded) ECAT IN: EtherCAT Input ECAT OUT: EtherCAT Output |
Topology |
- Daisy Chain (Up to 65,535 Nodes) |
Process Data |
- Variable PDO Mapping |
Sync Manager |
-
SM0: Mailbox Output SM1: Mailbox Input SM2: Process Data Output SM3: Process Data Input |
Mailbox (CoE) |
-
Emergency Message SDO Request SDO Response SDO Information |
Synchronization Mode |
-
Free Run Mode (Asynchronous) SM2 Event Synchronization Mode DC Mode (SYNC0 Event Synchronization) |
Device Profile |
- IEC 61800-7 CiA402 Drive Profile |
Interface - Pulse Input |
- 2 points, Photocoupler |
Interface - Field Network |
- EtherCAT |
|
|
|
|
- 1 Quoted Ship Date for orders placed before 12:00 pm PST. Quantities may affect Shipping Date.
