The αSTEP AZ Series stepper motor offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Absolute Mechanical Encoder, absolute-type positioning is available, without battery back up or external sensors to buy.
| Lead Time1 | - {Contact your local sales office for more information.} |
Product Line |
- Oriental Motor® |

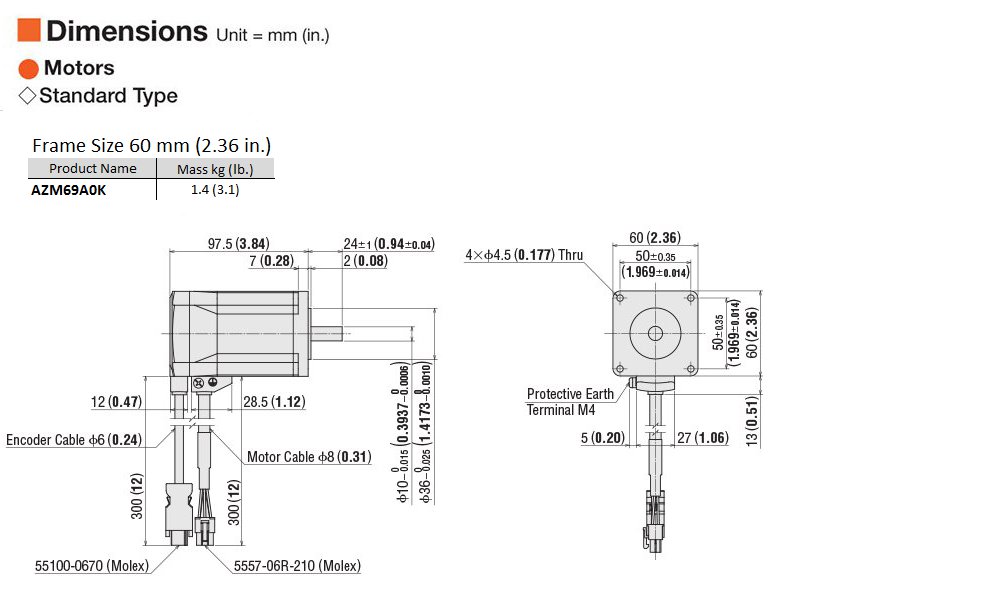

Frame Size |
- 2.36 in60 mm |
Motor Length |
- 3.84 in.97.5 mm |
Driver Voltage Input Power |
- DC |
Speed-Torque Characteristics |
-
 Speed - Torque Characteristics |
Holding Torque |
- 280 oz-in2 N·m |
Holding Torque at Motor Standstill |
- 142 oz-in1 N·m |
Type |
- Absolute Mechanical Encoder |
Shaft/Gear Type |
- Round Shaft (No Gearhead) |
Shaft |
- Single |
Electromagnetic Brake |
- Not Equipped |
Connection Type |
- Cable |
Resolution (Resolution Setting: 1000 P/R) |
- 0.36 °/Pulse |
Rotor Inertia |
- 4 oz-in²740x10-7 kg·m² |
RoHS Compliant |
- These products do not contain substances that exceed the regulation values in the RoHS Directive. |
Safety Standards |
- CE |
CE Marking |
- EMC Directives |
Insulation Class |
- Class B [130ºC (266ºF)] |
Insulation Resistance |
-
100 MΩ or more when 500 VDC megger is applied between the following places: Case - Motor and sensor windings |
Dielectric Strength |
-
Sufficient to withstand the following for 1 minute: Case - Motor and sensor windings 1.5 kVAC 50 Hz or 60 Hz |
Ambient Temperature |
- 0 ~ 40ºC (32 ~ 104ºF) (non-freezing) |
Ambient Humidity |
- 85% or less (Non-Condensing) |
Operating Atmosphere |
- Use in an area without corrosive gases and dust. The product should not be exposed to water, oil or other liquids. |
Degree of Protection |
- IP66 (excluding the mounting surface and connector) |
Stop Position Accuracy |
- ±3 arc minutes (±0.05º) |
Shaft Runout |
- 0.05 mm (0.002 in.) T.I.R. |
Concentricity |
- 0.075 mm (0.003 in.) T.I.R. |
Perpendicularity |
- 0.075 mm (0.003 in.) T.I.R. |
Permissible Overhung Load |
- 0 in. from Shaft End = 20 lb0.2 in. from Shaft End = 22 lb0.39 in. from Shaft End = 29 lb0.59 in. from Shaft End = 40 lb0.79 in. from Shaft End = 60 lb0 mm from Shaft End = 90 N5 mm from Shaft End = 100 N10 mm from Shaft End = 130 N15 mm from Shaft End = 180 N20 mm from Shaft End = 270 N |
Permissible Axial Load |
- 6.7 lb30 N |
|
|
|
|
|
|
|
|
