| Lead Time1 | - {Contact your local sales office for more information.} |
Product Line |
- Oriental Motor® |
Rated Output Power |
- 100 W (1/8 HP) |

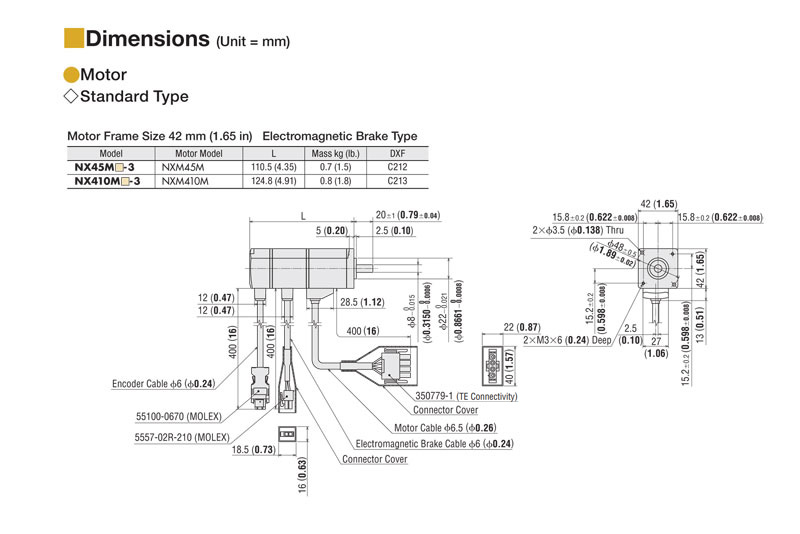

Motor Frame Size |
- 1.65 in.42 mm |
Speed-Torque Characteristics |
-
 Graph |
Rated Torque |
- 45 oz-in0.318 N·m |
Max Speed (rpm) |
- 5500 |
Rated Speed (rpm) |
- 3000 |
Max Instantaneous Torque |
- 135 oz-in0.955 N·m |
Rotor Inertia |
- 0.183 oz-in²0.0334x10-4 kg·m² |
Permissible Load Inertia |
- 15.10 oz-in²2.90x10-4 kg·m² |
Resolution (P/R) |
- 100 to 100000 (Factory setting 1000) |
Detector |
-
Absolute Encoder 1 rotation 20 bits, multiple rotations 16 bits |
Gear/Shaft Type |
- Round Shaft (No Gear) |
Electromagnetic Brake |
- Equipped |
Permissible Overhung Load |
- 0 in. from Shaft End = 18.2 lb0.2 in. from Shaft End = 19.8 lb0.39 in. from Shaft End = 21 lb0.59 in. from Shaft End = 23 lb0 mm from Shaft End = 81 N5 mm from Shaft End = 88 N10 mm from Shaft End = 95 N15 mm from Shaft End = 104 N |
Permissible Thrust Load |
- 13.2 lb59 N |
Thermal Class |
- 130 (B) |
Insulation Resistance (Motor) |
-
100 MΩ min. when measured with a 500 VDC megger between the following locations: Case - Motor Windings Case - Electromagnetic Brake Windings |
Dielectric Voltage (Motor) |
-
No abnormality is judged with the following application for 1 minute: Case - Motor Windings 1.5 kVAC 50 Hz or 60 Hz Case - Electromagnetic Brake Windings 1.0 kVAC 50 Hz or 60 Hz |
Ambient Temperature (Motor) |
- 0 ~ +40ºC (32 ~ 104ºF) (non-freezing) |
Ambient Humidity |
- 85% max. (non-condensing) |
Operating Atmosphere |
- No corrosive gases. Must not be exposed to oil or other liquids. |
Degree of Protection |
- IP65 (excluding installation surface and connector locations.) |
Shaft Runout |
- 0.05 T.I.R. (mm) |
Concentricity |
- 0.075 T.I.R. (mm) |
Perpendicularity |
- 0.075 T.I.R. (mm) |
Safety Standards |
-
CE UL/CSA |
RoHS Compliant |
- The products do not contain substances that exceed the regulation values in the RoHS Directive. |
Brake Type |
- Power Off Activated Type |
Brake Power Supply |
- 24 VDC ±10% |
Power Consumption |
- 6.1 W |
Excitation Current |
- 0.25 A |
Static Friction Torque |
- 45 oz-in0.318 N·m |
|
|
|
|
